Designing a PFAS-ready drinking water plant: decision frameworks for utilities under tight budgets

Designing a PFAS-ready drinking water plant is no longer optional. New federal Maximum Contaminant Levels (MCLs) for PFAS, combined with tighter state rules, mean pfas water treatment plant design decisions you make in the next 12 to 24 months will define your utility's risk, cost profile, and community trust for the next decade.

At the same time, projected PFAS removal costs for water utilities are expected to approach 4.2 billion dollars annually by 2026 (major industry association, 2026). More than 67 percent of water utilities cite operational cost as the primary barrier to PFAS treatment adoption (utility survey, 2026). The core challenge is clear: comply without breaking your capital and O&M budgets.

This guide introduces practical decision frameworks, design criteria, and example configurations so you can plan a PFAS-ready drinking water plant that is technically robust, financially realistic, and future flexible.

1. Regulatory context and why PFAS-ready design cannot wait

PFAS has moved from emerging concern to regulatory reality. Utilities are now facing binding limits and legally enforceable timelines for compliance. A clear grasp of the regulatory context is the starting point for any pfas water treatment plant design discussion.

1.1 PFAS MCLs and design targets

Recent federal rules establish very low MCLs for key PFAS compounds, typically in the single-digit parts-per-trillion range. In parallel, more than 15 states tightened PFAS standards in 2026 alone (water regulation market analysis, 2026).

From a design standpoint, that means:

You should treat the regulatory MCL as the absolute upper bound , not the design target.

A prudent engineering margin is to design for 50 percent or less of the MCL at the point of entry into the distribution system.

For long-chain PFAS, many utilities now target non-detect (<2 ppt) where feasible, since ion exchange resins can achieve non-detect levels for long-chain PFAS when properly sized and operated (professional association, 2026).

These targets directly influence process selection, media volume, empty bed contact time (EBCT), and monitoring requirements.

1.2 Why multi-barrier PFAS treatment is becoming standard

A growing consensus is emerging that single-technology solutions are rarely enough. Seventy-four percent of public sector infrastructure leaders say compliance with 2026 PFAS standards will require multi-stage treatment trains (environmental business survey, 2026).

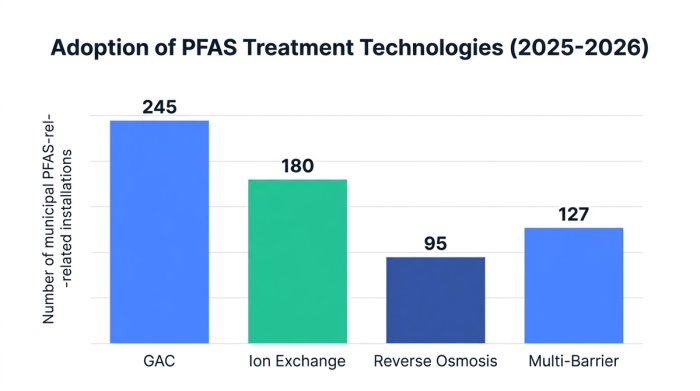

At the same time, technology adoption is diversifying. In 2026, a market analysis reported approximate PFAS-related deployments across U.S. municipal plants as:

Granular activated carbon (GAC): 245 installations

Ion exchange (IX): 180

Reverse osmosis (RO): 95

Multi-barrier configurations (for example, GAC + IX or IX + RO): 127

This shift matters for both performance and cost management. A pfas treatment train design that pairs a lower-cost bulk removal step with a high-polish step can dramatically reduce media use and extend run times.

1.3 Funding and budget constraints are structural, not temporary

Even with new grant and cost-sharing programs, budgets remain tight. Federal and state grant funding for PFAS upgrades grew by 38 percent in 2026 (water infrastructure funding report, 2026), yet the expected 4.2 billion dollars in annual costs far outpaces available support.

More than 55 percent of utilities implementing PFAS treatment since 2025 used modular or retrofittable systems to contain capital outlays (water infrastructure analysis, 2026). That trend points to a core design principle: your pfas treatment system for drinking water must be capable of phased expansion without rework.

Key takeaway: Begin with clear regulatory design targets and assume multi-barrier treatment. Then structure your PFAS-ready drinking water plant so it can be expanded modularly as funding and requirements evolve.

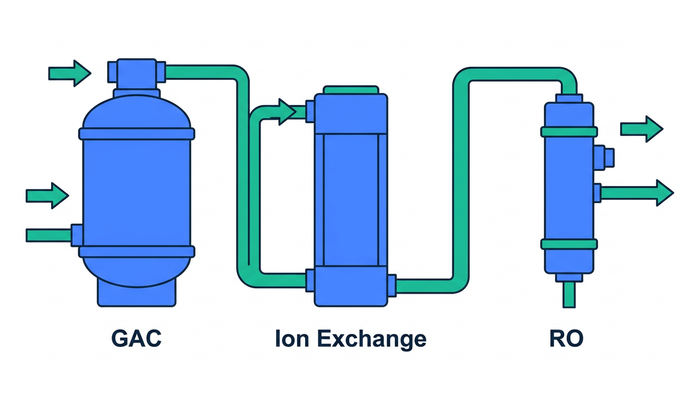

2. PFAS treatment technologies: strengths, limits, and design roles

A PFAS-ready design is less about picking a single "best" technology and more about assigning the right role to each option. Think of your plant like a relay team: different runners excel in different legs.

2.1 GAC: the workhorse for bulk removal

Granular activated carbon PFAS removal remains the most widely adopted first line of defense. According to a federal risk assessment, GAC systems deliver 80 to 98 percent removal efficiency in pilot-scale tests under current standards (risk assessment report, 2026).

Where GAC fits best:

As a primary PFAS removal step where influent concentrations are moderate and dominated by long-chain PFAS.

As a polishing step after conventional treatment when other process changes are already planned.

In systems where capital cost constraints favor larger vessels with longer media life.

Design notes:

EBCT in the range of 10 to 20 minutes is common for PFAS, often higher than for traditional organics.

Run length is highly sensitive to co-contaminants and natural organic matter.

GAC contactors are relatively straightforward to retrofit into existing filter galleries or as stand-alone pressure vessels.

Limitations appear with short-chain PFAS, high organic loading, and frequent backwashing, which can reduce effective capacity.

2.2 Ion exchange: targeted, high-efficiency polishing

Ion exchange resin PFAS treatment is often described as the "sharpshooter" of PFAS technologies. Professional association data shows IX can reduce long-chain PFAS to non-detect (<2 ppt) when designed correctly (professional association, 2026).

Best use cases:

As a polish after GAC , where most organics and bulk PFAS are already removed.

In small to mid-sized utilities that require very low effluent levels but want to minimize RO-scale complexity.

As a modular PFAS polishing step in water treatment that can be easily added to existing trains.

Design considerations:

Resin selection must match the local PFAS profile, alkalinity, and co-ions.

Bed depth and hydraulic loading need to prevent channeling and protect effluent quality.

Spent resin regeneration and disposal pathways must be planned from the outset.

IX struggles if used alone in very high PFAS influent conditions or in water with high sulfate and competition for binding sites.

2.3 Reverse osmosis: comprehensive but capital intensive

Reverse osmosis PFAS removal drinking water systems offer the most comprehensive barrier against both long- and short-chain PFAS. A national water innovation laboratory reports that RO is the only commercially proven technology achieving more than 99 percent removal across PFAS chain lengths in municipal studies (innovation laboratory, 2026).

RO is well suited for:

Plants already considering desalination, hardness reduction, or multiple contaminant control .

Sites where source water is highly contaminated and other technologies cannot reach design goals.

Utilities that can manage PFAS concentrate management in RO systems , including brine treatment or off-site disposal.

However, RO brings its own challenges:

Higher specific energy consumption.

Need for robust pretreatment to protect membranes.

PFAS-laden brine that must be managed, not simply discharged.

2.4 Comparing lifecycle costs in context

From a distance, RO often appears "too expensive" while GAC seems "cheap." In reality, cost of PFAS treatment in drinking water plants depends on:

Media replacement frequency and transportation.

Labor, monitoring, and process control complexity.

PFAS sludge and brine disposal routes.

Utility surveys show that operational cost is the number one concern for 67 percent of utilities as they evaluate PFAS treatment (utility report, 2026). Meanwhile, more than 55 percent of utilities chose modular or retrofittable solutions to manage capital costs.

A sound decision framework compares 10 to 20 year net present costs for viable combinations of GAC, IX, and RO, not just first-year capex.

Key takeaway: GAC, IX, and RO each have a distinct design role. Combine them strategically rather than seeking a single perfect technology.

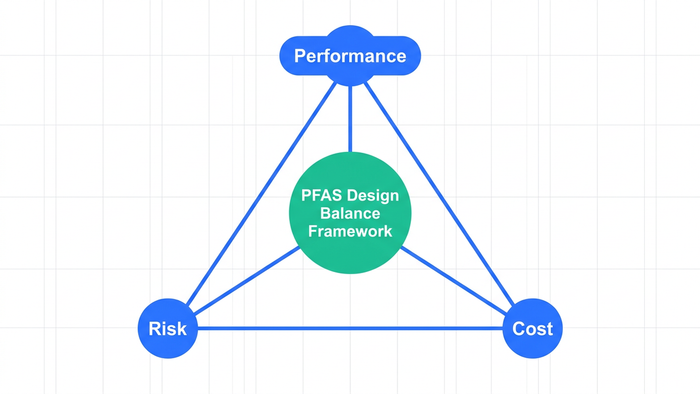

3. The PFAS Design Balance Framework: performance, risk, and cost

To move from concept to decisions, municipal leaders need a repeatable way to weigh options. BlueDrop Waters often applies what we call the PFAS Design Balance Framework : a three-axis evaluation of performance, risk, and cost that guides designing PFAS compliant water treatment plant configurations.

3.1 Axis 1: Performance and regulatory resilience

Start by mapping each treatment option against:

Target effluent concentrations relative to pfas mcl drinking water design limits.

Ability to handle future tightening of MCLs without a full redesign.

Sensitivity to influent variability and co-contaminants.

For example:

GAC alone may meet current limits for modest influent PFAS, but has limited headroom if standards tighten.

IX polish after GAC usually offers more headroom, especially for long chains.

RO provides maximum resilience but shifts challenges to brine management.

This axis answers the question: "Will this design still be compliant and reliable in ten years, given known regulatory trends?"

3.2 Axis 2: Risk, operations, and reliability

Risks fall into three categories:

Compliance risk: risk of breakthrough between sampling intervals.

Operational risk: risk that staffing limitations or complexity lead to performance issues.

Asset risk: risk that early technology choices become stranded as regulations or funding shift.

A 2026 technology analyst noted that real-time monitoring and digital solutions are increasingly key to reducing compliance risk and automating reporting (water technology analysis, 2026). This is especially true as utilities deploy pfas monitoring requirements in drinking water that extend beyond occasional grab samples.

In practical terms:

Treatment trains with simpler O&M can reduce operational risk, even if capital cost is slightly higher.

Modular PFAS treatment skids and standardized controls reduce asset risk, since units can be repurposed or scaled.

3.3 Axis 3: Full lifecycle cost under budget constraints

Instead of focusing solely on installed cost, evaluate:

Capital expenditures by phase, aligned with expected funding cycles.

Annual O&M, including power, chemicals, labor, media, and pfas sludge and brine disposal .

Residual handling, transport, and potential future tightening of PFAS waste rules.

For many utilities, multi-barrier but modular designs score better on this axis than single, monolithic systems. You obtain acceptable performance and low risk while preserving flexibility to expand as budgets permit.

3.4 Applying the framework in practice

When used systematically, the PFAS Design Balance Framework yields a short list of technically and financially viable options. A structured approach looks like this:

Define regulatory targets and performance margins.

Screen out configurations that clearly cannot meet those goals.

Score remaining options against risk dimensions, including staffing realities.

Compare 20 year cost curves for 2 to 4 candidate treatment trains.

This replaces ad hoc decision making with a transparent, defensible evaluation that can be presented to boards, councils, and the public.

Key takeaway: A PFAS-ready design is a balance problem. Use a structured framework that weighs performance, risk, and lifecycle cost instead of chasing the lowest capital quote.

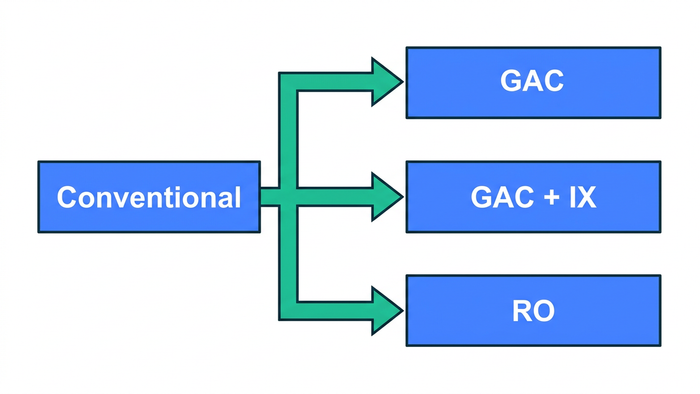

4. Configuring a PFAS-ready drinking water plant: common treatment trains

With the framework in mind, utilities can evaluate practical pfas treatment solutions for utilities that have been field tested and refined. Below are four common configurations that illustrate trade-offs.

4.1 Conventional plant + GAC polish: the entry configuration

Best for: utilities with moderate PFAS levels, relatively simple PFAS profiles, and limited short-term budgets.

Train overview:

Existing coagulation, sedimentation, filtration.

New GAC contactors as a pfas polishing step in water treatment .

Pros:

Leverages existing infrastructure.

Lower capital cost compared with RO.

Well understood operational profile and vendor ecosystem.

Cons:

Limited margin if PFAS standards tighten beyond current levels.

Media replacement can be frequent if organics load is high.

This is often the first step in a phased drinking water plant PFAS upgrade strategy, with IX or additional stages added later.

4.2 GAC + IX: modular dual-barrier polish

Best for: utilities that anticipate tighter rules, or where long-chain PFAS must be driven to non-detect.

Train overview:

Conventional treatment.

GAC vessels for bulk PFAS and organics.

IX resin vessels for high-efficiency polishing.

Pros:

Higher resilience to future MCL tightening.

Better control of short-chain PFAS with appropriate resins.

IX can be installed as modular PFAS treatment skids , phased in as budgets allow.

Cons:

More complex O&M than GAC alone.

Requires clear plan for resin regeneration or disposal.

A 2026 case review of a mid-sized city that deployed a modular GAC + IX train showed PFAS reduced to below 2 ppt , compliance ahead of schedule, and O&M savings of 18 percent compared with initial projections due to optimized media changeouts (utility case report, 2026).

4.3 IX or RO as primary PFAS barrier for highly impacted sources

Best for: groundwater or surface water with very high PFAS concentrations, or where multiple contaminants justify RO.

IX-dominant train:

Pretreatment tailored to protect resins.

IX as primary PFAS removal.

Optional GAC before or after for organics or taste and odor.

RO-dominant train:

Particle and organics pretreatment.

RO membranes providing broad PFAS and other contaminant removal.

Post-treatment stabilization.

In both cases, pfas concentrate management in RO systems or IX waste handling must be engineered carefully.

4.4 Adding PFAS-ready design to greenfield WTP projects

For new plants, the opportunity is to design PFAS-readiness from day one:

Reserve space and hydraulic capacity for future pfas treatment system for drinking water installations.

Design pipe galleries, electrical rooms, and SCADA for future GAC, IX, or RO units.

Integrate pfas sampling and analysis services into the lab design and budget.

This approach adds limited capital overhead but prevents expensive rework if regulations tighten or source water changes.

Key takeaway: No single treatment train fits every utility. Use standard configurations as templates, then customize based on local PFAS profiles, infrastructure, and funding plans.

5. Retrofitting existing plants: from risk assessment to phased upgrades

Most utilities will not build a new pfas ready drinking water plant from scratch. Instead, they must retrofit within constraints of legacy basins, filters, and buildings. Success depends on careful PFAS risk assessment and realistic phasing.

Step 1: PFAS risk assessment in water treatment plants

A robust pfas risk assessment in water treatment plants focuses on three things:

Source characterization: chain-length profiles, concentration ranges, and co-contaminants.

Process mapping: where PFAS may concentrate, transform, or break through.

Exposure pathways: which entry points and zones pose the greatest customer or regulatory risk.

This assessment informs where to place a pfas treatment system design in the existing train and whether multiple locations or intermediate polishing are required.

5.2 Step 2: Retrofit feasibility and hydraulic checks

Evaluate where PFAS units can be physically added without disrupting core functions:

Available footprint near existing filter galleries or clearwells.

Hydraulic grade line impacts and pumping requirements.

Structural capacity for new pressure vessels or tanks.

In some plants, the least-disruptive option is to install skidded GAC or IX units outside the main building and re-route finished water through them. This is why modular PFAS treatment skids are gaining traction.

5.3 Step 3: Phased upgrade strategy under tight budgets

Phasing is often the only realistic path forward. A common three-phase approach is:

Phase 1: Install GAC polish at the entry to distribution to rapidly reduce PFAS and address community concerns.

Phase 2: Add IX polish for additional resilience or to deal with emerging PFAS species.

Phase 3: Integrate RO or additional advanced treatment if future rules or contaminants justify it.

According to an infrastructure survey, more than 55 percent of utilities implementing new PFAS treatment since 2025 used modular or retrofittable systems (infrastructure study, 2026). Phasing in this way aligns with grant cycles and rate adjustments, while keeping the plant compliant.

5.4 Case study 1: Modular GAC + IX under capital constraints

A midwestern city with roughly 150,000 residents faced rising PFAS levels in a surface water source and new state-level limits that would take effect within two years. A risk assessment showed existing conventional treatment would not reliably achieve the required levels.

Working within serious budget constraints, the utility adopted a modular GAC + IX treatment train strategy. GAC contactors were installed first to handle bulk removal. Two years later, IX skid modules were added in parallel as a high-efficiency polish.

Results reported in a 2026 internal utility study:

PFAS concentrations reduced to below 2 ppt , meeting both federal and state limits.

Compliance achieved ahead of regulatory deadlines .

Overall O&M expenses were 18 percent lower than originally modeled due to optimized media change intervals enabled by better monitoring.

5.5 Case study 2: Retrofitting with IX and real-time monitoring

In a fast-growing desert city, a groundwater-fed plant serving about 80,000 people identified PFAS above upcoming MCLs. Building a new plant was not an option.

Engineers designed a drinking water plant PFAS upgrade that retrofitted IX vessels into an underutilized portion of the filter gallery and added a digital monitoring system to track PFAS surrogate parameters and pressure drop.

Within the first year of operation, the case study documented:

99 percent PFAS removal relative to influent.

Operational expenses reduced by 22 percent , largely from improved resin utilization and fewer emergency callouts.

Automated data outputs that simplified reporting to regulators and supported transparent communication with the community.

Key takeaway: Retrofitting is absolutely feasible, but success depends on rigorous risk assessment, hydraulic planning, and phased deployment aligned with funding realities.

6. Operational realities: monitoring, residuals, and when designs fail

Even the best pfas treatment system design guidelines can underperform if operational realities are not addressed upfront. Utilities need to plan for monitoring, residuals, and failure modes before committing to a design.

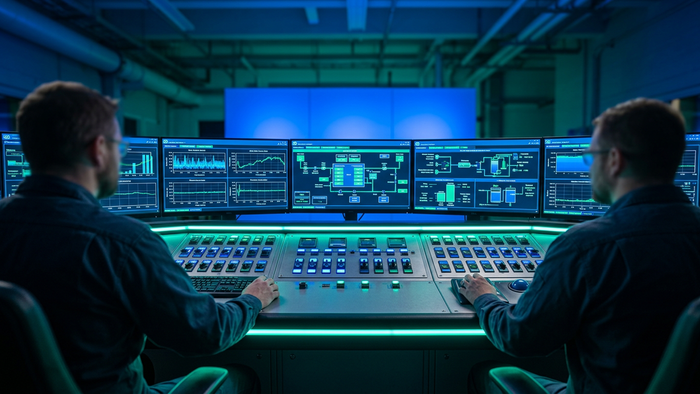

6.1 Monitoring and data: from grab samples to real-time insight

Historically, PFAS monitoring relied almost entirely on lab-based grab samples. That is changing quickly. A market intelligence report found that in 2026, new installations used:

Manual sampling: 70 deployments.

Automated sensors: 132.

Integrated digital platforms: 193.

Utilities are increasingly expected to provide pfas monitoring requirements in drinking water that go beyond basic compliance. In practice, this means:

Online sensors to track surrogate parameters such as organics, turbidity, and conductivity.

Integration with SCADA and digital platforms for automated reporting.

Alarm thresholds that trigger investigation well before PFAS breakthrough.

A 2026 technology analyst emphasized that real-time monitoring is now central to verifying PFAS breakthrough, optimizing media changeouts, and demonstrating compliance .

6.2 Residuals: PFAS sludge and brine disposal

Every PFAS technology creates a residual stream that must be managed:

GAC and IX produce spent media and potentially PFAS-rich backwash or brine.

RO produces a concentrate stream that contains PFAS and other contaminants.

Designs must address pfas sludge and brine disposal routes such as:

Off-site transport to approved hazardous waste facilities.

On-site volume reduction, thickening, and dewatering.

Participation in regional PFAS destruction or incineration initiatives where available.

Ignoring residuals planning can turn an otherwise strong PFAS design into a compliance and cost problem.

6.3 When PFAS treatment systems fail in practice

Common failure modes in PFAS treatment include:

Underestimated influent variability , where occasional spikes cause breakthrough between sampling rounds.

Incorrect media selection , especially for short-chain PFAS.

Insufficient pretreatment , leading to fouling or short media life.

Lack of monitoring , which delays response to performance degradation.

These failures typically trace back to early design decisions that did not incorporate conservative margins, realistic influent scenarios, or operational staffing constraints.

6.4 Counterarguments: "Wait-and-see" and "One-tech-only" strategies

Two counterarguments often surface in budget discussions:

"We will wait until PFAS rules stabilize."

This exposes the utility to regulatory, financial, and reputational risk. With 82 percent of U.S. municipalities prioritizing PFAS compliance investments in 2026 , the direction of travel is clear. Waiting can mean compressed timelines later and higher emergency costs.

"We will pick one technology and standardize on it."

Standardization can simplify O&M, but PFAS profiles and co-contaminants differ significantly across sources. Seventy-four percent of infrastructure leaders expect multi-stage treatment trains to be required. Insisting on a single technology can create stranded assets or underperformance.

Key takeaway: Operational planning, monitoring, and residuals management are as critical as technology choice. Designs that ignore these factors often struggle in the first 24 months of operation.

7. How BlueDrop Waters supports PFAS-ready plant design and upgrades

BlueDrop Waters focuses on providing pfas treatment solutions for utilities that are technically robust and economically grounded. The company specializes in advanced water treatment plants, wastewater and effluent treatment, net zero and ZLD systems, and nature-based solutions, all supported by data-driven monitoring.

7.1 Technology-agnostic PFAS treatment trains

BlueDrop Water's advanced Water Treatment Plants (WTP) provide a flexible foundation for pfas water treatment plant design . Because the approach is technology agnostic, design teams can integrate:

GAC units for bulk PFAS removal and organics management.

Ion exchange resin systems as high-efficiency polishing steps.

Reverse osmosis where comprehensive PFAS and multi-contaminant control are needed.

This flexibility supports both greenfield PFAS compliant drinking water systems and retrofitting water plants for PFAS removal .

7.2 Modular deployments and phased EPC delivery

For utilities under budget pressure, BlueDrop Waters emphasizes modular PFAS systems:

Modular PFAS treatment skids that can be added in phases.

Pre-integrated mechanical, electrical, and controls packages.

EPC delivery that aligns with grant windows and multi-year capital plans.

This approach makes it easier for municipal managers to request and evaluate a quote for PFAS treatment system that can grow over time without sacrificing final performance targets.

7.3 Data-driven diagnostics and monitoring integration

BlueDrop Waters embeds data and monitoring into the plant design from the start:

Real-time monitoring of key parameters tied into centralized dashboards.

Automated reporting tools to support epa PFAS drinking water standard compliance .

Performance diagnostics that help optimize media changeouts and detect anomalies early.

This aligns directly with the trend identified by market analysts: smart, data-driven monitoring platforms are becoming standard in PFAS plant upgrades .

7.4 Full lifecycle support from design to operation

Because BlueDrop Waters works across the full water lifecycle, the company can support:

PFAS treatment plant sizing and design based on local hydrogeology and source characterization.

EPC contractor services for PFAS water treatment installations and upgrades.

Long-term operations assistance, including PFAS sampling and analysis services and proof-of-impact reporting.

For utilities, this reduces the risk of fragmented projects where design, construction, and operations are poorly coordinated.

Key takeaway: By combining technology-agnostic design, modular phasing, and integrated monitoring, BlueDrop Waters helps utilities design and operate PFAS-ready drinking water plants that align with tight budgets and evolving rules.

8. Three actionable steps utilities can start this year

For many municipal leaders, the biggest challenge is knowing how to begin. Below are three practical steps you can initiate within the next budget cycle.

Conduct a PFAS readiness audit

A PFAS readiness audit should cover:

Current PFAS concentrations and variability for all key sources.

Existing treatment train performance relative to pfas mcl drinking water design requirements.

Gaps in monitoring, lab capacity, and data management.

The outcome is a prioritized list of vulnerabilities and quick wins, which can inform grant applications and rate discussions.

8.2 Pilot a scalable PFAS treatment train

Before committing to full-scale CAPEX, deploy a PFAS removal pilot plant that mirrors a realistic treatment train, for example:

GAC only.

GAC + IX.

IX only.

RO with or without upstream organics control.

Pilot-scale data helps answer key questions:

Which PFAS removal technologies for water plants perform best on your specific water.

What EBCT or bed volumes are required.

How often media changeouts will be necessary.

Pilots also generate data that strengthens funding applications and community trust.

8.3 Develop a 10-year PFAS investment roadmap

Finally, translate the PFAS Design Balance Framework into a long-term roadmap:

Define 3, 5, and 10 year PFAS performance goals, not just minimum compliance.

Identify trigger points for moving from Phase 1 to Phases 2 and 3 upgrades.

Align planned investments with expected funding sources and rate adjustments.

This roadmap becomes the backbone of your pfas mitigation in drinking water treatment strategy and provides transparency for regulators and the community.

Key takeaway: Start with assessment, then pilot, then planning. Each step builds data and confidence, while avoiding premature commitment to a single technology path.

9. Visualizing cost distribution and monitoring trends

Two visual concepts often help boards and councils understand PFAS decisions: how costs break down, and how monitoring practices are shifting.

The first is a pie chart of annualized PFAS treatment costs . A major utility association found that average costs in 2026 break down approximately as:

Operational costs: 48 percent.

Maintenance: 22 percent.

Media replacement: 17 percent.

Compliance reporting: 13 percent.

This breakdown shows why operational efficiency and smart monitoring matter as much as the initial equipment price.

The second is a bar chart showing the rise of integrated digital monitoring platforms compared to manual sampling. With 193 deployments of integrated digital platforms in new installations compared with 70 manual-only configurations (market intelligence, 2026), the direction is clear. Digital tools are becoming the norm for PFAS-ready design.

Key takeaway: Communicating PFAS strategies visually can accelerate understanding and support across technical and non-technical stakeholders.

10. Frequently asked questions about PFAS-ready plant design

10.1 What are the key design criteria for a PFAS-ready drinking water plant?

Core design criteria for PFAS treatment include:

Meeting or surpassing current and anticipated pfas regulations for water treatment plants .

Achieving target effluent concentrations with a safety margin, often 50 percent of the MCL.

Building hydraulic and spatial flexibility for future additions of GAC, IX, or RO.

Designing for monitoring that supports regulatory reporting and operational optimization.

Planning for residual handling such as PFAS sludge and brine disposal .

10.2 How can municipalities upgrade existing plants for PFAS compliance?

Most utilities pursue retrofitting water plants for PFAS removal through phased steps:

Install GAC polish at the end of the existing treatment train.

Add IX polishing units or additional GAC beds as needed.

Integrate RO or other advanced processes if water quality or regulations demand it.

Throughout, utilities focus on minimal disruption to existing operations and use of modular PFAS treatment skids to reduce construction complexity.

10.3 How do GAC, ion exchange, and RO compare for PFAS removal?

GAC: provides 80 to 98 percent removal in many cases, ideal as a first barrier or polish for moderate contamination.

Ion exchange: highly effective, particularly for long-chain PFAS, and can achieve non-detect levels with proper design.

Reverse osmosis: typically achieves more than 99 percent removal across PFAS species, but involves higher capital, operational complexity, and brine management.

Most utilities end up with some form of pfas treatment train design that combines at least two of the three.

10.4 What are the main operational challenges in PFAS treatment?

Common operational challenges include:

Ensuring sufficient staff capacity and training for new systems.

Managing media changeouts efficiently to control costs.

Implementing PFAS monitoring requirements in drinking water through both lab analyses and digital tools.

Handling residuals safely and in compliance with waste regulations.

Overcoming these challenges requires integrating operations planning into early pfas treatment system design guidelines .

10.5 How should utilities think about PFAS concentrate and sludge disposal?

PFAS does not disappear when removed from water. Utilities must plan for:

Transport and disposal of spent GAC or resin at approved facilities.

Management of RO concentrate streams that contain elevated PFAS.

Participation in regional or national PFAS destruction pathways as they emerge.

Ignoring these factors can convert a strong pfas treatment system for drinking water into a waste management liability.

10.6 When is a PFAS pilot plant necessary?

A PFAS removal pilot plant is particularly valuable when:

Source water has complex or poorly characterized PFAS profiles.

Multiple treatment technologies are under consideration.

Funding applications require performance data specific to the utility.

Pilots provide empirical data that reduce uncertainty in sizing, cost estimates, and design choices.

11. Summary: Key lessons for PFAS water treatment plant design

Designing a pfas ready drinking water plant is an engineering challenge, a financial planning exercise, and a trust-building opportunity. Across the examples and data points in this guide, several lessons repeat.

Use multi-barrier, modular designs. Evidence suggests that multi-stage treatment trains are becoming the norm, not the exception. Modular skids and phased installs help keep budgets under control.

Prioritize monitoring and data. Integrated digital platforms and real-time monitoring improve compliance, optimize media usage, and simplify reporting.

Plan for residuals from day one. PFAS captured in GAC, IX, or RO concentrate must be managed carefully to avoid future liabilities.

Design beyond minimum compliance. With regulations tightening and community expectations rising, targeting performance better than the bare MCL gives room to adapt.

Utilities that adopt a structured framework for pfas water treatment plant design , test their assumptions through pilots, and partner with experienced integrators are better positioned to protect public health and ratepayers.

12. How BlueDrop Waters can help you move from intent to implementation

BlueDrop Waters combines technology-agnostic treatment design , modular deployment, and data-rich monitoring to help utilities build PFAS compliant drinking water systems that balance compliance and cost.

If you are planning a drinking water plant PFAS upgrade or evaluating options for new PFAS treatment capacity, BlueDrop Waters can support you across:

Source assessment and PFAS risk assessment in water treatment plants .

PFAS treatment plant sizing and design using GAC, IX, RO, or nature-based adjuncts.

EPC delivery, commissioning, and optimization of pfas treatment system for drinking water installations.

Ongoing performance monitoring, reporting, and optimization.

Visit BlueDrop Waters at https://www.bluedropwaters.com/ to start a conversation, request a quote for PFAS treatment system options tailored to your utility, or explore reference projects.

13. Final thoughts and next step

PFAS regulations are tightening, public concern is rising, and budget constraints remain real. A successful strategy for pfas water treatment plant design does not require perfection on day one. It requires a clear framework, defensible decisions, and designs that can scale.

Begin by assessing your PFAS risk, piloting realistic treatment trains, and mapping out a phased roadmap that integrates monitoring, residuals management, and future flexibility. Then partner with a solutions provider like BlueDrop Waters that can align treatment technology, data systems, and project delivery with your community's needs.

Take the next step by scheduling a PFAS readiness discussion with the BlueDrop Waters team and translate intent into a practical, PFAS-ready drinking water plant plan.
