Nature-Based vs. Grey: 10-Year Cost and Performance Comparison for Stormwater and CSO Control

Choosing between nature based stormwater solutions vs grey infrastructure is no longer a purely technical debate. It is a strategic investment decision that influences your 10-year budget, regulatory compliance, climate resilience, and community livability.

Municipal utilities, industrial campuses, and large developments are under pressure to control stormwater and combined sewer overflows (CSOs) while keeping lifecycle costs under control. At the same time, they must address urban flooding, aging sewer networks, and rising expectations for greener, healthier cities.

This guide presents a data-driven, 10-year comparison of nature-based and grey approaches. It uses current research, real-world case studies, and practical frameworks to help decision-makers plan capital programs that perform reliably, attract funding, and remain cost-effective over time.

We will compare lifecycle costs, performance, and risk, then show how hybrid systems built around nature-based assets can de-risk your next project.

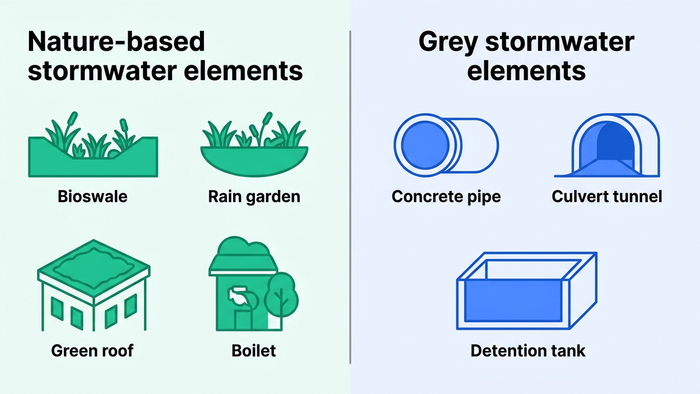

1. Definitions: What Counts as Nature-Based and What Counts as Grey?

Any serious comparison of nature based stormwater solutions vs grey infrastructure must start with precise definitions. Many projects fail in the planning phase because teams are not talking about the same thing.

What is nature based stormwater management?

Nature-based stormwater management uses ecological processes, soils, and vegetation as primary treatment and storage mechanisms. Typical assets include:

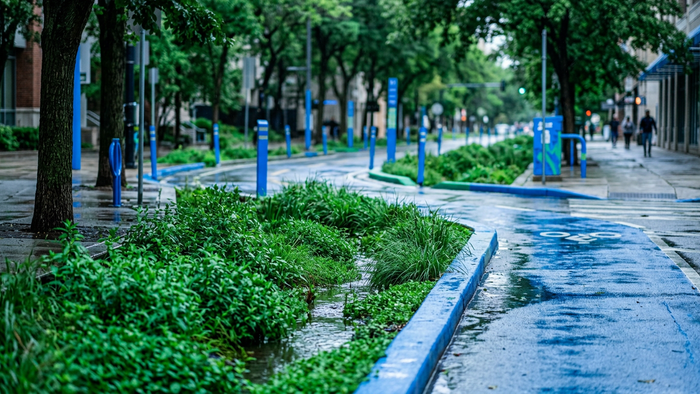

Bioswales and rain gardens for stormwater infiltration along streets and parking areas

Green roofs that provide stormwater retention at the building level

Permeable pavement systems that store runoff in subsurface layers

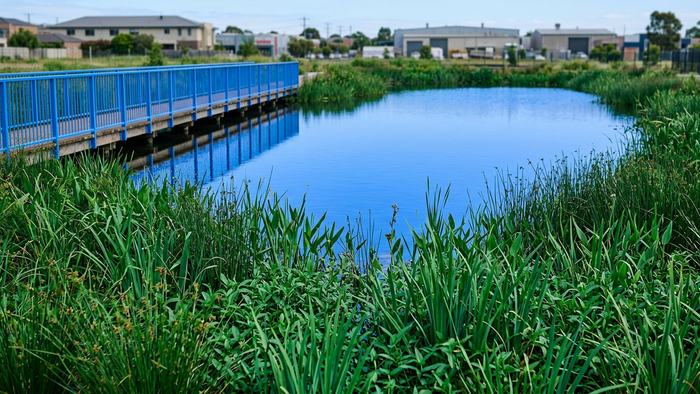

Urban wetlands for stormwater treatment , including constructed wetlands in parks or buffer zones

Riparian buffers, restored floodplains, and blue green corridors that reconnect water with landscape

These are often grouped under green infrastructure stormwater management . They deliver hydrologic functions while also providing co-benefits such as urban cooling, habitat, and public amenities.

Research synthesized by a global environmental institute in 2026 found that nature-based stormwater solutions deliver an average 33 percent reduction in lifecycle costs compared to grey infrastructure over 10 years (World Resources Institute, 2026). That cost advantage is a key reason they are gaining momentum worldwide.

What is grey stormwater infrastructure?

To compare green infrastructure vs grey infrastructure fairly, we also need clarity on the conventional baseline.

Grey stormwater systems rely primarily on engineered, hard structures to collect, convey, and store runoff:

Concrete pipes and culverts

Concrete detention and retention basins

Lined channels and tunnels

Mechanical pumps and control gates

When utilities ask "what is grey stormwater infrastructure," they typically refer to this network of hard conveyance and storage assets designed for a specific design storm.

These assets have a long track record, but limitations of grey stormwater infrastructure are increasingly evident: high capital intensity, rising O&M costs, inflexible design envelopes, and limited co-benefits.

A 2026 industry survey reported that lifecycle cost analysis is now a requirement in more than 80 percent of municipal stormwater procurements (International Water Association, 2026). This shift is pushing utilities to look beyond first cost when weighing nature based solutions vs traditional infrastructure.

2. 10-Year Lifecycle Cost Analysis: Green vs Grey

The central question is no longer “Does it work on day one?” but “What does it cost and deliver over 10 years and beyond?”

Key cost components

A sound lifecycle cost analysis green vs grey infrastructure accounts for:

Capital expenditure (CAPEX): design, permitting, construction

Operations and maintenance (O&M): routine inspections, cleaning, vegetation management, mechanical upkeep

Rehabilitation and replacement: mid-life component replacement or major repairs

Risk and avoided damages: avoided flood damage, avoided CSO penalties, reduced emergency response

Co-benefits and externalities: heat island reduction, property value uplift, public health benefits

When comparing the cost of green vs grey stormwater infrastructure, most utilities track the first three. The most forward-looking ones also assign monetary value to point 4 and 5.

Evidence from global studies

Multiple global studies align on the long-term cost profile of nature based solutions vs traditional infrastructure:

A major global environmental institute found that nature-based stormwater systems reduce 10-year lifecycle costs by an average of 33 percent relative to grey alternatives, mainly due to lower energy use and simplified maintenance (World Resources Institute, 2026).

A multiyear review of urban retrofits concluded that green infrastructure projects deliver a median 14 percent annual return on investment over 10 years , once flood avoidance, land value appreciation, and reduced O&M are included (McKinsey, 2026).

An international water body estimated that every 1 million dollars invested in green stormwater infrastructure generates 2.6 million dollars in ecosystem and social co-benefits over a decade (International Water Association, 2026).

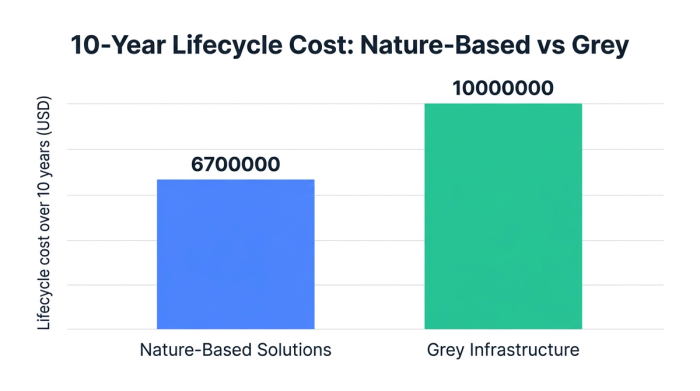

The bar chart, based on the World Resources Institute’s 10-year model, illustrates a representative scenario:

Nature-based solutions: 6.7 million dollars lifecycle cost

Grey infrastructure: 10 million dollars lifecycle cost

Why nature-based systems often win financially

Several structural factors explain this cost gap between green vs gray stormwater infrastructure:

Lower energy demand: Systems such as constructed wetlands vs concrete detention basins typically rely on gravity and biological processes instead of high energy pumping and aeration.

Distributed risk: Many smaller green assets reduce the financial impact of a single failure or capacity shortfall.

Deferred and avoided upgrades: By reducing peak flows and runoff volumes, green systems can defer expensive upsizing of downstream pipes and CSO tunnels.

However, a sober assessment also acknowledges a counterpoint: in very constrained urban cores with no available land, the cost of green vs grey stormwater infrastructure can converge, or grey options may be cheaper initially. In those cases, a hybrid strategy that pairs nature-based systems where space exists with targeted grey upgrades is usually the most economical path.

3. Performance: Stormwater Control and CSO Reduction

Cost is only half the story. For combined sewer communities, performance against CSO targets is the non-negotiable requirement.

How green infrastructure improves hydrology

Nature based solutions for stormwater runoff change the fundamental hydrologic response of the catchment:

Infiltration and storage: Bioswale stormwater management and rain garden stormwater solution designs infiltrate water into amended soils, increasing lag time and reducing peak flow.

Evapotranspiration: Green roofs stormwater retention and street trees move water back into the atmosphere, lowering the total runoff volume.

Distributed detention: Permeable pavement stormwater management systems provide subsurface storage directly under paved surfaces, buffering intense storms.

Studies summarized by a national environmental agency in 2026 showed that rain gardens and bioswales can increase stormwater retention by up to 45 percent compared to traditional lawns and hardscapes (EPA, 2026). This directly supports runoff volume reduction green infrastructure goals.

Impact on CSO control

A water sector federation analyzed utilities that deployed green infrastructure as a primary CSO control measure. It found that municipalities integrating green assets achieved an average 70 percent reduction in CSO incidents within 5 years , compared with baseline conditions (Water Environment Federation, 2026).

Another 10-year dataset showed divergent trends:

Systems built around green infrastructure cut CSO event rates significantly over 2016 to 2026.

Systems relying mainly on grey retention tunnels saw slower, flatter improvements.

This is represented in the line chart above, where the CSO incident index for green systems declines from 30 to 9, while grey-focused systems decline only from 28 to 20 over the same period.

Managing urban flooding and climate risk

Nature based solutions for urban flooding also outperform conventional hard engineering in many climate scenarios:

An international urban resilience study reported that cities adopting nature based flood management vs hard engineering approaches reduced flood incidents by an average of 25 to 50 percent relative to business-as-usual (various global sources, 2025 to 2026).

One European port city’s blue green corridor program, which replaced sections of concrete drainage with wetlands and permeable green streets, cut urban flood incidents by 43 percent and improved biodiversity and citizen satisfaction (NRDC, 2026).

The reason is simple: nature-based assets are not tuned to a single design storm. They adapt across a range of intensities , which is crucial as rainfall patterns shift.

A planning director quoted in an international report summarized it succinctly in 2026: “The long-term resilience and adaptability of nature-based stormwater systems make them distinctly superior in the face of climate uncertainty and urbanization” (World Resources Institute, 2026).

4. Beyond Hydraulics: Co-Benefits and Externalities

When comparing nature based stormwater solutions vs grey infrastructure, many of the most valuable benefits occur outside the drainage model.

Environmental and social co-benefits

Green stormwater systems often deliver:

Biodiversity benefits of green stormwater infrastructure via habitat creation, pollinator corridors, and aquatic ecosystems

Urban heat island and green stormwater infrastructure synergies, where tree canopy and vegetated roofs lower ambient temperatures

Better air quality and noise attenuation

Safer, more attractive streetscapes and public spaces

An international water organization’s 2026 analysis demonstrates that every 1 million dollars invested in green stormwater infrastructure yields 2.6 million dollars in quantified ecosystem and social co-benefits over 10 years . These include reduced heat-related mortality, improved mental health from access to green spaces, and increased active transport.

A senior urban planner from the same body noted that “integrated green infrastructure not only lessens operational costs but also delivers significant benefits in urban cooling, air quality, and biodiversity” (International Water Association, 2026).

Economic and property value impacts

Nature-based stormwater solutions also have tangible economic impacts:

A global consulting group found that green infrastructure retrofit projects achieve a median 14 percent ROI over 10 years , driven by avoided flood damage, reduced O&M, and land value appreciation (McKinsey, 2026).

Multiple property market studies show that proximity to green corridors, wetlands, or quality rain garden networks is associated with measurable property value premiums, often in the 5 to 15 percent range.

An environmental economist summarized the urban investment logic: “Cities investing in bioswales, green roofs, and constructed wetlands are also investing in public health outcomes and property value stability” (McKinsey, 2026).

Grey infrastructure, by contrast, is typically buried, fenced off, or located in industrial zones. It delivers crucial hydraulic performance but few visible co-benefits.

Counterargument: Are co-benefits overestimated?

Some engineers worry that co-benefits are too speculative to influence investment decisions. That concern is valid when estimates rely on generic multipliers instead of local data.

The best practice is to:

Use location-specific studies for heat, health, and property impacts where available.

Apply conservative assumptions and run sensitivity tests.

Treat co-benefits as an upside range, while still making sure the core hydrologic and cost numbers stand on their own.

Even with conservative assumptions, most comparative studies still show a clear advantage for blue green infrastructure vs grey infrastructure when co-benefits are included.

5. Limitations of Grey Systems and Risks of Status Quo

To truly understand nature based solutions vs traditional infrastructure, decision-makers must also examine the constraints and risks of staying with business-as-usual grey systems.

Common grey infrastructure stormwater problems

Aging sewer infrastructure and flooding

Many combined systems are operating beyond their designed life, with infiltration, blockages, and insufficient capacity.

Heavy rainfall triggers CSOs and localized flooding, even where regulatory standards are technically met.

Escalating O&M costs

Pumps, screens, and complex mechanical systems require skilled staff, energy, and spare parts.

Reactive maintenance and emergency repairs are expensive and disruptive.

Inflexible performance envelope

Hard structures are designed for a specific design storm. Climate-driven shifts in rainfall patterns can quickly make them under-sized.

Upsizing typically requires major capital projects, public disruption, and long approvals.

Limited co-benefits and public support

Buried pipes and fenced basins do not build public support in the same way as new wetlands, greenways, or park enhancements.

These grey infrastructure stormwater problems do not invalidate conventional assets. Major trunk sewers and outfalls will always be required. However, they do argue for a hybrid system , where grey assets provide backbone capacity and green assets handle distributed capture and polishing.

Regulatory and funding trends

Market trends from 2024 to 2026 reinforce this shift:

62 percent of new municipal projects now implement hybrid systems that combine nature-based and grey approaches (Water Environment Federation, 2026).

40 percent of large cities have adopted nature-based solutions as their primary stormwater management strategy, up from 27 percent in 2024 (NRDC, 2026).

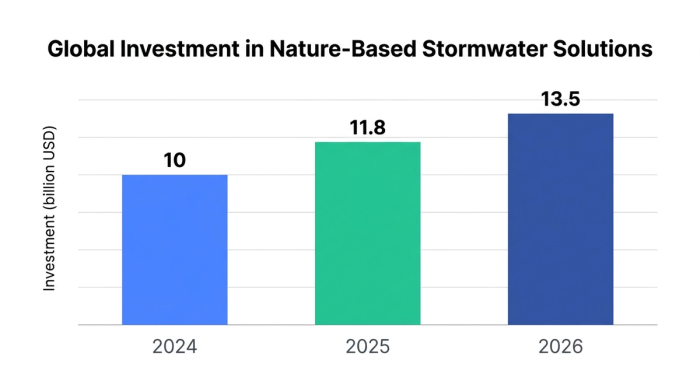

Global investment in nature-based stormwater infrastructure reached 13.5 billion dollars in 2026 , a 35 percent increase over 2024 (World Bank, 2026).

In practical terms, this means that grant programs, climate funds, and CSO consent decrees increasingly favor or require green components in proposed projects.

6. Case Studies: 10-Year Outcomes from Real Cities

Case Study 1: Bioswales and constructed wetlands for CSO reduction

A large coastal utility launched a green stormwater initiative between 2015 and 2025. The program focused on nature based solutions for combined sewer overflow in priority basins, including:

Bioswales and rain gardens along key streets

Urban wetlands for stormwater treatment at outfalls

Green roofs on public buildings

By 2025, the utility reported:

65 percent reduction in CSO events in targeted basins relative to 2015 baseline.

Estimated 6.8 million dollars in lifecycle savings compared to the originally proposed grey tunnel and tank alternative (Water Environment Federation, 2026).

From a cost-performance perspective, this case shows how green vs gray stormwater infrastructure can deliver equivalent or better compliance at lower lifecycle cost, especially when available surface space is used creatively.

Case Study 2: Blue-green corridors and flood management

A low-lying European port city faced frequent pluvial flooding and combined sewer surcharges. Instead of relying solely on new pipes and basins, the city created a “blue-green ring” around the urban core.

Key components included:

Constructed wetlands and open water features along historical canals

Permeable pavements and bioswales on major boulevards

Retention parks and rain gardens integrated with public spaces

Within a decade, independent evaluations found:

43 percent reduction in reported flood incidents in project areas (NRDC, 2026).

Measurable improvements in biodiversity and citizen satisfaction.

This project is a clear demonstration of nature based flood management vs hard engineering . Grey assets remained essential, but the addition of blue green infrastructure vs grey infrastructure alone created a more resilient, socially valued system.

Lessons learned from both cases

Phased deployment works: Start with priority subcatchments to build data and public support.

Monitoring is critical: Continuous performance data helps defend budgets and refine designs.

Cross-departmental collaboration pays off: Stormwater, planning, parks, and transport teams must co-own the outcomes.

7. Practical Design Framework: Building a 10-Year Hybrid Strategy

For most cities, the real decision is not binary. The question is how to integrate nature based solutions for stormwater runoff into an existing grey backbone to achieve the best 10-year outcomes.

Here is a simple framework that utilities and project teams can apply.

Step 1: Diagnose your current system

Use a structured assessment around four lenses:

Hydraulic performance: Where do CSOs, surcharges, or localized floods occur most frequently?

Asset condition: Which segments of the network are nearing end-of-life or have high failure risk?

Land and opportunity mapping: Where is there surface or shallow subsurface space for green interventions (streetscapes, school yards, parking lots, parks)?

Regulatory and funding drivers: What consent decrees, climate plans, or grant opportunities shape your options?

Step 2: Select nature-based typologies by context

Different catchment contexts call for different nature based stormwater solutions vs grey infrastructure mixes.

Examples:

Dense urban core

Green roofs stormwater retention

Planter boxes and small-scale rain garden stormwater solution retrofits

Limited permeable pavements on sidewalks and traffic-calmed streets

Residential neighborhoods

Bioswale stormwater management along curbs

Larger rain gardens at intersections and community lots

Permeable pavement stormwater management for alleys and parking lanes

Industrial or campus settings

Urban wetlands for stormwater treatment at key discharge points

Constructed wetlands vs concrete detention basins where land is available

Step 3: Quantify performance and cost

For each option, develop a 10-year profile including:

Capital cost, including design and community engagement

Annual O&M, differentiating vegetation care from mechanical maintenance

Projected CSO reduction, runoff volume reduction, and water quality outcomes

Co-benefits such as canopy coverage, heat island mitigation, and public space upgrades

This is where lifecycle cost analysis green vs grey infrastructure becomes an operational tool instead of a theoretical concept.

Step 4: Sequence investments over 10 years

Treat your hybrid system like a portfolio:

Prioritize projects with the best combination of “problem solved” and “co-benefits delivered”.

Start where you can capture rapid wins on CSO reduction and flooding.

Use early successes to unlock additional funding for more ambitious nature based solutions for urban flooding.

Step 5: Plan for monitoring and adaptive management

Nature-based systems need performance tracking, just as pumps and basins do. Plan for:

Flow and level monitoring at key nodes

Water quality sampling to quantify stormwater quality nature based solutions benefits

Vegetation health and sediment accumulation assessments

The result is a dynamic hybrid system that evolves with your city and climate.

8. How BlueDrop Waters Helps Build High-Performance Nature-Based Systems

BlueDrop Waters works with municipalities, industrial clients, and large campuses that want reliable performance from nature-based systems without sacrificing compliance or operational control.

Aerated constructed wetlands as a stormwater and CSO solution

A flagship offering from BlueDrop is its aerated constructed wetlands technology. These systems combine the ecological treatment of wetlands with engineered aeration and flow control.

Compared with traditional concrete detention basins, aerated wetlands can:

Offer robust pollutant removal for stormwater and CSO discharges.

Reduce energy use relative to fully mechanical treatment systems.

Provide habitat, amenity, and cooling benefits similar to other green infrastructure stormwater management assets.

BlueDrop’s project data, aggregated across multiple deployments, aligns with global research suggesting that nature-based stormwater solutions can cut 10-year lifecycle costs by around one-third compared with purely grey options.

Integrating advanced treatment and ZLD

For industrial and high-risk discharges, nature based solutions vs traditional infrastructure is not an either/or decision. BlueDrop helps clients integrate:

Advanced purification systems that polish stormwater and CSO flows to stringent standards.

Zero Liquid Discharge (ZLD) configurations where necessary, so recovered water can be reused for irrigation, cooling, or process needs.

These systems can be paired with upstream nature-based assets to create climate resilient stormwater infrastructure that meets tight quality limits while minimizing long-term O&M.

Monitoring and lifecycle optimization

A crucial component of BlueDrop’s value is its Comprehensive Water Quality Investigation and monitoring expertise. The company supports clients with:

Baseline water quality and flow investigations.

Continuous performance monitoring for green and hybrid systems.

Lifecycle diagnostics and reporting to demonstrate regulatory compliance and quantify benefits.

By combining engineering, ecology, and digital monitoring, BlueDrop helps cities and industries move beyond pilot projects to scalable, portfolio-level nature based stormwater solutions vs grey infrastructure strategies.

9. Visual Summary: Comparing Nature-Based and Grey Over 10 Years

To summarize the 10-year comparison, it helps to think in terms of three lenses: cost, performance, and value.

Cost

Green systems typically show lower 10-year lifecycle cost , driven by energy savings, lower mechanical maintenance, and avoided downstream upgrades.

Grey systems can have lower first cost in space-constrained areas but higher O&M exposure.

Performance

Nature-based solutions for stormwater runoff and CSO control reduce peak flows, CSOs, and flood incidents in a more distributed way.

Grey assets provide high-capacity conveyance and storage but with a narrower performance envelope.

Value and co-benefits

Nature-based systems deliver biodiversity, cooling, public realm enhancements, and social co-benefits that increasingly matter for funding and political support.

Conventional assets deliver essential hydraulic performance but few visible co-benefits.

In most real cities, the winning strategy is not pure green or pure grey. It is an integrated portfolio where blue green infrastructure vs grey infrastructure alone delivers better outcomes per dollar invested.

10. Common Pitfalls and How to Avoid Them

As more cities adopt nature based solutions for combined sewer overflow and flooding, a familiar set of challenges has emerged.

Pitfall 1: Treating green infrastructure as “add-on landscaping”

Nature based stormwater solutions must be engineered assets with performance targets, not decorative planters.

Avoid this by:

Setting clear design storms and water quality objectives.

Specifying soils, plant palettes, and overflow structures with engineering rigor.

Pitfall 2: Underestimating maintenance needs

A common counterargument to green system adoption is concern about maintenance. Poorly maintained assets can clog, lose capacity, or create nuisance conditions.

Best practice is to:

Budget for dedicated green infrastructure crews or incorporate tasks into existing parks and roads teams.

Design for easy access and clear maintenance responsibilities.

Use monitoring data to adjust maintenance regimes over time.

Pitfall 3: Ignoring equity and community engagement

Nature-based solutions can disproportionately benefit, or bypass, specific neighborhoods.

Mitigate this risk by:

Prioritizing investments in flood-prone, underserved areas.

Engaging community stakeholders early and often.

Pitfall 4: Over-relying on rules of thumb

While rules of thumb are useful, each catchment behaves differently. Over-simplified design ratios can lead to under-performance or overbuilding.

Use calibrated models, pilot sites, and performance monitoring to refine assumptions instead of relying solely on generic multipliers.

11. Actionable Takeaways for Utilities and Project Teams

To translate this analysis into action, here are three steps you can begin within the next 6 to 12 months.

1. Make lifecycle analysis your default decision tool

Require 10-year lifecycle cost analysis green vs grey infrastructure for all major stormwater and CSO projects.

Include O&M, risk, and co-benefits alongside capital cost.

2. Build a “minimum viable” green portfolio

Identify 3 to 5 priority subcatchments with high CSO or flood frequency.

Implement a mix of bioswale stormwater management, rain gardens, and green roofs stormwater retention.

Pair these with monitoring to generate performance and cost evidence.

3. Partner with experienced integrators

Work with firms like BlueDrop Waters that have delivered both grey and nature based systems at scale.

Use their experience to avoid common pitfalls and optimize long-term performance.

Treat your first wave of projects like a lab: measure, learn, and scale what works.

12. FAQ: Nature-Based vs Grey Stormwater Infrastructure

1. What is the difference between nature-based and grey stormwater infrastructure?

Nature-based infrastructure uses soils, vegetation, and ecological processes to manage runoff. Examples include bioswales, rain gardens, green roofs, permeable pavements, and urban wetlands.

Grey infrastructure relies on engineered hard assets such as pipes, culverts, concrete basins, and mechanical pumping systems. In practice, high-performing systems combine both.

2. Are green stormwater systems more cost-effective over 10 years?

Multiple global analyses, including a 2026 study by a leading environmental institute, indicate that nature-based stormwater solutions reduce 10-year lifecycle costs by about 33 percent compared with grey alternatives.

This advantage comes from lower energy use, simpler maintenance, and avoided downstream upgrades, especially when co-benefits are considered.

3. What types of nature-based solutions can manage urban flooding?

A range of assets can contribute to nature based solutions for urban flooding :

Green roofs and permeable pavements to reduce runoff at source.

Bioswales and rain gardens to infiltrate water along streets and in public spaces.

Urban wetlands for stormwater treatment and storage at low points.

These distributed assets reduce peak flows and create time lags that lower flood risk.

4. How do nature-based systems perform for CSO control?

Utilities that have adopted nature based solutions for combined sewer overflow control report strong results. A 2026 analysis found that municipalities implementing green infrastructure achieved around 70 percent reduction in CSO incidents within 5 years relative to baseline.

Distributed capture, infiltration, and storage reduce the volume and intensity of flows entering combined sewers during storms.

5. What are the main limitations of grey stormwater infrastructure?

Common limitations of grey stormwater infrastructure include:

High capital and O&M costs, especially for mechanical systems.

Inflexibility under shifting climate and rainfall patterns.

Aging assets, leading to increased failure risk and emergency repairs.

Lack of visible co-benefits such as cooling, habitat, or public amenity.

Grey systems remain essential but are best complemented with green assets.

6. Where does BlueDrop Waters fit into a city’s stormwater strategy?

BlueDrop Waters helps cities and industrial clients design and implement hybrid stormwater and CSO systems that combine robust grey infrastructure with high-performance nature-based solutions.

Its aerated constructed wetlands, advanced purification systems, ZLD configurations, and comprehensive monitoring services provide a practical pathway from pilot-scale projects to citywide portfolios.

13. Final Thoughts and Next Steps

The data is increasingly clear: when utilities compare nature based stormwater solutions vs grey infrastructure over a full 10-year lifecycle, green and hybrid systems typically deliver better performance, lower cost, and higher overall value .

Nature-based assets reduce CSO events, mitigate urban flooding, enhance water quality, and generate substantial co-benefits for health, biodiversity, and property values. Grey assets remain important, but as part of a broader, more adaptable blue green strategy.

If your city, campus, or industrial site is planning its next round of stormwater or CSO investments, this is the moment to make lifecycle analysis and hybrid design your standard.

BlueDrop Waters partners with utilities and project teams to design, build, and monitor high-performing nature-based and hybrid systems that meet regulatory requirements and budget realities.

Ready to evaluate nature based stormwater solutions vs grey infrastructure for your next project? Contact BlueDrop Waters to schedule a diagnostic review and 10-year lifecycle assessment.
