Low Energy Zero Liquid Discharge Design: Patterns and Technology Choices for 2026 Plants
Low energy zero liquid discharge design is no longer a niche engineering topic. It sits at the intersection of water security, regulatory pressure, and decarbonization for industrial and municipal operators.
Global industrial ZLD spend is projected to reach 11.2 billion USD by 2026, up from 8.7 billion USD in 2024, driven by stricter discharge rules and water reuse needs (MarketsandMarkets 2026). At the same time, energy consumption accounts for 45 to 60 percent of total ZLD operating cost (Bluefield Research 2026). In other words, the business case for ZLD in 2026 is fundamentally a case for energy efficient zero liquid discharge systems.
This guide breaks down the dominant design patterns, low energy ZLD technologies, and practical decisions that determine your plant’s energy profile and economics.
1. Why Low Energy Zero Liquid Discharge Design Matters in 2026
Zero liquid discharge is often mandated for high impact sectors like chemicals, textiles, power, and refineries. Yet many plants still operate like the first generation of systems: oversized evaporators, limited heat integration, and little digital optimization.
By 2026, that model is financially and environmentally unsustainable.
Energy costs make up nearly half to two thirds of ZLD opex (Bluefield Research 2026). A major water research group reports that 80 percent of industrial ZLD clients now rank energy efficiency as their top technology selection criterion, ahead of capex (Water Online 2026). The message is clear: ZLD energy intensity optimization is the new competitive battleground.
Hybrid architecture adoption is also shifting the baseline. According to Frost & Sullivan (2026), advanced hybrid membrane-thermal ZLD systems achieve up to 32 percent lower energy use compared to conventional thermal-only plants. Median water recovery in these systems now exceeds 95 percent in 2026, up from 88 percent in 2024 (Global Water Intelligence 2026).
In practical terms, low energy zero liquid discharge design delivers:
Lower operating cost and faster payback
Smaller carbon footprint, supporting corporate net zero targets
Greater resilience to power price volatility
Easier regulatory approval, especially where energy and emissions reporting are mandatory
Line chart showing global industrial ZLD market growth from 8.7 billion USD in 2024 to 11.2 billion USD in 2026
The central design challenge
The core challenge is simple to state, but complex to execute: maximize recovery and salt crystallization while minimizing the amount of water you ever send to a thermal step .
That is where high recovery membranes, energy recovery devices, heat integration, and digital control come together.
2. Key Design Patterns For Energy Efficient Zero Liquid Discharge Systems
Low energy zero liquid discharge design is less about a single technology and more about design patterns . Think of them as reusable system blueprints that you tune to your chemistry, volumes, and regulatory context.
Below are the four patterns that dominate 2026 plants.

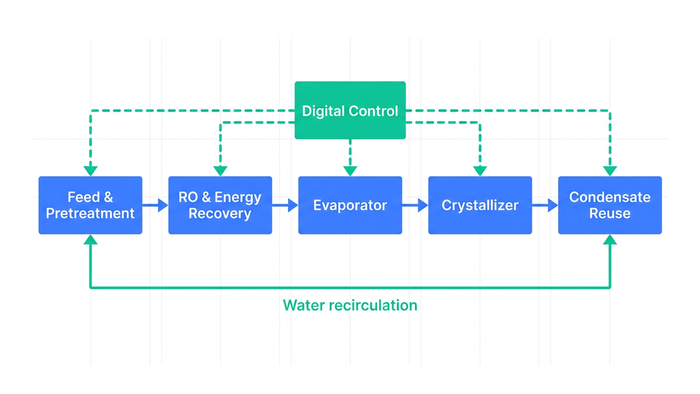

Pattern 1: High-recovery membrane ZLD design with thermal finishing
This is now the reference architecture for many industries.
Typical train:
Advanced pretreatment : screening, equalization, coagulation or flocculation, followed by ultrafiltration in ZLD pretreatment .
Reverse osmosis pre-concentration : one or two pass RO, often with energy recovery devices.
Optional brine polishing : electrodialysis, high pressure RO, or nanofiltration to push recovery.
Evaporator-crystallizer ZLD design for the final brine volume.
High recovery membrane ZLD design reduces the volume reaching the evaporator or crystallizer by 65 to 75 percent (Global Water Intelligence 2026). This is the single biggest lever to reduce energy use in ZLD plants.
When this works best :
Feed TDS in low to medium range
Relatively stable chemistry over time
Moderate scaling and fouling propensity
Where it can struggle :
Highly variable multi-stream inputs without blending control
Extremely high silica, organics, or oil and grease without robust pretreatment

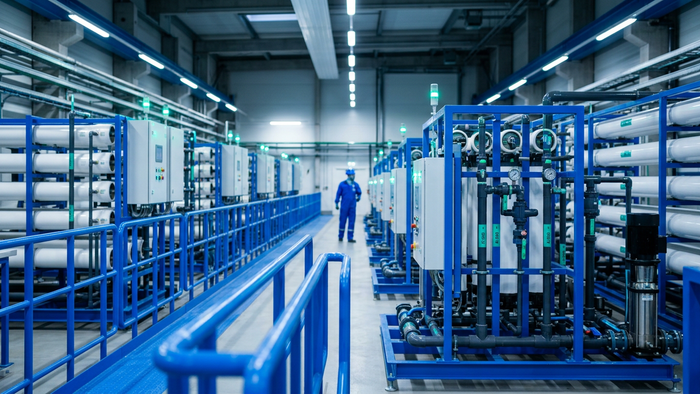

Industrial interior showing ultrafiltration racks and reverse osmosis skids in a clean, modern ZLD pretreatment facility

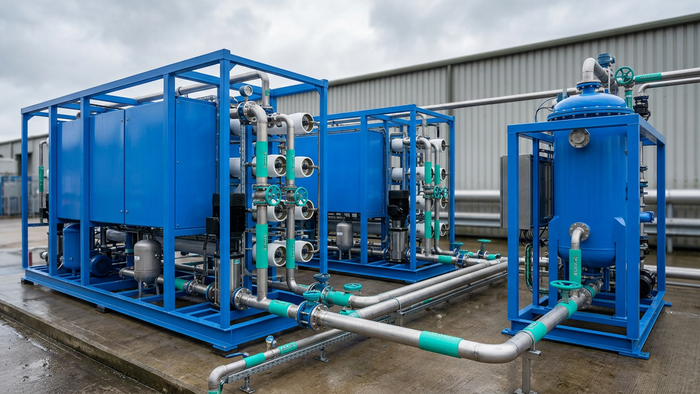

Pattern 2: Hybrid membrane-thermal ZLD systems with waste heat recovery
In 2026, hybrid membrane-thermal ZLD systems are no longer experimental. They form the backbone of many high capacity plants.
The typical innovation here is zero liquid discharge with waste heat recovery from boilers, process condensers, or cogeneration plants. Waste heat feeds multiple effect evaporators or mechanical vapor recompression, not the grid.
Key attributes:
Heat integration in ZLD systems so that vapor recompression and heat exchangers reuse thermal energy
High recovery membrane pre-concentration to reduce evaporator duty
Sometimes an additional step like membrane distillation for ZLD in niche cases
Hybrid system adoption is growing fast. One 2026 analysis notes that hybrid systems deliver 25 to 35 percent lower energy demand compared to purely thermal and have become a dominant design for new large scale plants (Frost & Sullivan 2026).
Pattern 3: MLD-ZLD hybrid system for stepwise rollout
Minimal liquid discharge (MLD) and ZLD comparison is becoming central to boardroom discussions. Instead of jumping directly to full ZLD, many operators design for MLD now with clear expansion to ZLD later .
This pattern typically:
Targets 90 to 95 percent recovery initially using membranes and partial thermal treatment
Treats the remaining brine via secure disposal or offsite treatment
Builds in pad and utility allowances to add evaporator-crystallizer units later
Benefits:
Lower initial capex and energy use
Faster implementation to meet near term compliance
Less risk for sites with uncertain production or regulatory futures
This is especially attractive in regions where regulations are tightening in phases.
Pattern 4: Modular zero liquid discharge plant for decentralization
Decentralized and modular zero liquid discharge plant design is gaining traction by 2026, especially for industrial parks and remote facilities.
According to Global Water Intelligence (2026), modular ZLD for mid size industrial clusters is moving from pilot to mainstream. The benefits include:
Reduced transfer pumping energy and line losses
Standardized, repeatable modules with known energy performance
Faster implementation and easier scalability
Analogy : Instead of building one massive power plant to serve a region, you deploy smaller distributed units closer to load, reducing transmission losses and improving resilience. ZLD is following a similar pattern.
3. Low Energy ZLD Technologies: What Actually Reduces kWh/m³
Many marketing brochures promise “energy efficient zero liquid discharge systems”. To evaluate real performance, it helps to break down the technology stack from pretreatment to crystallization.
3.1 Pretreatment and primary concentration
Effective pretreatment is not just about protecting downstream units. It directly influences zero liquid discharge energy consumption .
Key elements:
Ultrafiltration in ZLD pretreatment : Provides consistent SDI and turbidity, stabilizing RO performance and reducing chemical cleaning frequency.
Reverse osmosis for ZLD pre-concentration : RO is typically 3 to 6 times less energy intensive per unit of water removed than thermal evaporation.
Energy recovery devices in ZLD : Modern pressure exchangers or turbochargers can reduce RO energy demand by 20 to 35 percent in high pressure applications, based on 2026 vendor benchmarks.
When configured correctly, reverse osmosis pre-concentration can reduce the volume needing thermal treatment by 65 to 75 percent , drastically cutting plant energy (Global Water Intelligence 2026).
3.2 Secondary concentration and polishing
For high salinity brines, secondary concentration steps bridge the gap between RO and the evaporator.
Options include:
Electrodialysis for brine management : Particularly useful for monovalent rich brines, often integrated with RO.
Forward osmosis zero liquid discharge : Niche but emerging for specific applications with high fouling potential.
High pressure RO or nanofiltration : Adds a few percentage points of recovery that compound into significant thermal savings.
These units are often evaluated via cost-effective ZLD system design tools that simulate capex, opex, and risk across scenarios.
3.3 Thermal systems: evaporator-crystallizer ZLD design
Evaporation and crystallization remain the heart of achieving true ZLD. They are also where most energy is consumed.
A 2026 breakdown shows that thermal processes account for about 63 percent of ZLD plant energy while membranes consume around 21 percent and pumping or ancillary loads 16 percent (Bluefield Research 2026).
This is why optimizing evaporator-crystallizer ZLD design is critical.
Core levers:
Use multiple effect evaporators with optimal effect count
Incorporate mechanical vapor recompression where power cost and grid stability permit
Integrate process heat from boilers or turbines
Utilize variable frequency drives and advanced control for pumps and blowers

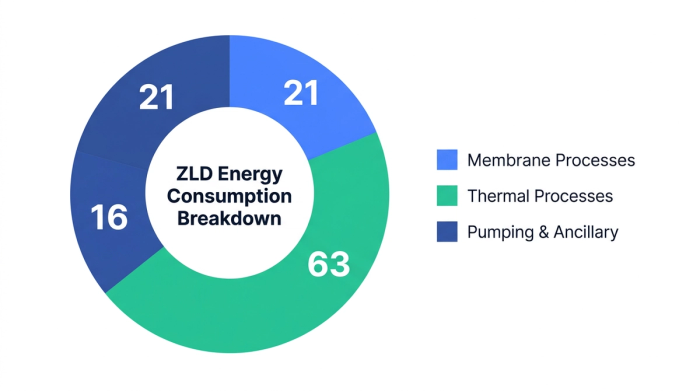

Pie chart showing ZLD plant energy consumption breakdown: 63% thermal processes, 21% membrane processes, 16% pumping and ancillary
3.4 Renewable and alternative energy integration
Two prominent configurations are gaining real momentum:
Zero liquid discharge with waste heat recovery
Captures steam condensate or low grade heat from onsite processes
Uses it as a primary source or preheating step for evaporators
Common in chemicals, power, and refineries where high temperature rejection is abundant
Solar powered zero liquid discharge plant
Photovoltaic arrays coupled with high efficiency drives and storage
In some cases, solar thermal fields assist evaporation
In 2026, more than 35 percent of new ZLD plants globally feature some form of renewable integration , up from 18 percent in 2024 (IDTechEx 2026)
These approaches allow plants to reduce grid dependency and support decarbonization pledges.
3.5 Digital optimization: AI and IoT for ZLD energy reduction
A major research company reports that digital twin and IoT driven optimization is a top growth segment in ZLD (Bluefield Research 2026).
According to their 2026 director, AI-driven process control combined with real time monitoring has cut ZLD energy intensity by 20 to 30 percent in leading facilities.
Digital optimization supports low energy zero liquid discharge design by:
Dynamic setpoint optimization for RO pressure and recovery
Predictive control of evaporator loads to avoid peak tariff periods
Fouling and scaling prediction to schedule cleaning proactively
Integration with plant energy management systems
In short, AI and IoT for ZLD optimization are not optional add-ons. They are fast becoming integral to modern designs.
4. Comparing Membrane-based ZLD vs Thermal ZLD: Where Each Fits
Engineering teams often ask: how far should we push membranes before thermal steps, and when is thermal indispensable?
4.1 Membrane-based ZLD vs thermal ZLD: framing the choice
Instead of viewing this as an either or battle, it helps to think in terms of membrane-based ZLD vs thermal ZLD as a continuum .
At one end, you have membrane dominant designs, with RO and electrodialysis pushing recovery to the limits, followed by small thermal units.
At the other, thermal dominant designs rely on large evaporators with minimal membrane pre-concentration.
By 2026, hybrid membrane thermal ZLD systems have become the default compromise, reflecting both performance and risk considerations.
Expert view : As Dr. Priya Nair, Head of Water Technology at a leading consultancy, notes, “Hybrid architectures particularly those using membrane pre-concentration followed by thermal finishing have set the new benchmark for ZLD energy efficiency in 2026.” (Frost & Sullivan 2026)
4.2 When membrane dominant makes sense
Membrane heavy designs suit cases where:
Feed salinity and scaling risk are moderate
Temperature limitations or air quality constraints restrict large thermal units
Energy prices are high or power availability is limited
Benefits:
Lower specific energy consumption
Modular expansion and redundancy
Easier integration with solar powered zero liquid discharge plant concepts
Counterpoint: Overreliance on membranes can backfire if feed variability or fouling rates are underestimated. Plants may face higher downtime, cleaning chemical use, and lost production.
4.3 When thermal dominant is justified
Thermal dominant designs still make sense when:
Very high TDS, organics, or mixed industrial streams challenge membranes
Reliable high grade waste heat is available onsite
Footprint constraints favor compact high capacity evaporators
Even here, reverse osmosis for ZLD pre-concentration and minimal membrane steps usually remain cost effective, since they reduce the evaporator duty significantly.
Analogy : Think of membranes and thermal units like gears in a transmission. You do not drive a car in a single gear all the time. You choose the combination that matches terrain, speed, and efficiency.
5. Real-world Energy Reduction Strategies: Case Studies
To illustrate how these design choices translate in practice, consider two 2026 deployments. While specific company names are not the focus, these reflect typical results for modern low energy ZLD projects.
Case Study 1: Hybrid membrane thermal retrofit in a chemicals complex
A large chemical complex in India upgraded its legacy evaporator-only ZLD plant to a hybrid membrane-thermal ZLD system .
Key design moves:
Added high recovery RO with energy recovery devices ahead of the evaporator
Installed ultrafiltration based pretreatment to stabilize feed quality
Integrated waste heat from process condensers into the evaporator heating circuit
Outcomes by 2026, summarized in an independent industry study:
32 percent lower energy consumption versus the previous thermal-only setup
Recovery increased from 92 percent to 96 percent
Total ZLD operating cost reduced by 28 percent
This mirrors Frost & Sullivan’s 2026 findings that hybrid systems can cut energy by roughly a third while increasing recovery.
Case Study 2: Solar assisted industrial ZLD with IoT analytics
A petrochemical facility in East Asia deployed a solar powered zero liquid discharge plant supported by digital analytics.
Features:
Large rooftop and ground mount PV arrays linked to high efficiency drives
Hybrid membrane thermal configuration with advanced RO pre-concentration
IoT sensors feeding a central analytics platform for process control
According to a 2026 water intelligence report, this plant achieved:
40 percent reduction in grid energy use for brine concentration
Full compliance with national zero effluent mandates
Significant reduction in ZLD plant operating cost
These examples highlight three recurring success factors:
Aggressive membrane pre-concentration with energy recovery devices in ZLD
Integration of renewables or waste heat
Strong digital control over both water and energy flows
6. Cost-effective ZLD System Design: Balancing Capex, Opex, and Risk
Designing a plant around low energy ZLD technologies is only part of the story. Project sponsors also need to optimize capital cost, risk, and long term flexibility.
6.1 ZLD capex and opex optimization framework
A practical approach is to structure decision making around three pillars:
Process efficiency
Maximize recovery and minimize thermal load
Reduce specific kWh per cubic meter and kCal per kilogram of evaporation
Resilience and flexibility
Ability to handle future feed changes
Modular upgrades from MLD to ZLD
Lifecycle economics
Discounted cash flow analysis of capex and opex
Scenario testing for energy prices and utilization
ZLD capex and opex optimization is not about minimizing capex alone. Many plants that cut corners upfront end up locked into high energy costs for two decades.
6.2 Practical levers to reduce energy use in ZLD plants
Specific measures to reduce energy use in ZLD plants include:
Right sizing pumps, blowers, and evaporators based on realistic load profiles
Using energy recovery devices in ZLD high pressure lines
Implementing heat integration in ZLD systems with pinch analysis and heat exchanger networks
Installing VFDs and soft starters to avoid peaks and match flows
Deploying digital twins to test and tune operating strategies
These measures often pay back within 2 to 5 years by reducing electricity consumption.
6.3 Counterarguments and limitations
There are important caveats.
Some low energy ZLD technologies, such as advanced membranes or digital platforms, require higher technical expertise and robust maintenance culture.
Renewable integration may face land, permitting, or intermittency constraints.
In certain geographies, grid power prices are low enough that energy reduction gains less obvious short term payback.
Despite these points, energy efficient zero liquid discharge systems increasingly offer not just environmental benefits, but also regulatory and reputational advantages that factor into board level decisions.
7. How BlueDrop Waters Designs Low Energy ZLD Systems
BlueDrop Waters has worked across more than 1400 projects in over 30 countries, covering industrial, municipal, and ecological systems. For ZLD, the company’s focus is clear: low energy zero liquid discharge design that balances reliability, sustainability, and cost.
7.1 Technology agnostic, hybrid architectures
BlueDrop Waters is technology agnostic . This means their teams select from a broad toolkit of mechanical, biological, chemical, and membrane processes based on feed chemistry and project goals.
Typical hybrid membrane thermal ZLD systems from BlueDrop Waters include:
Advanced pretreatment with ultrafiltration and clarification
Reverse osmosis pre-concentration with high recovery targets
Optional electrodialysis or other polishing steps
Evaporator-crystallizer ZLD design with waste heat or renewable energy integration where feasible
This integrated approach aligns with industry data showing hybrid systems deliver up to 32 percent lower energy use compared to conventional thermal designs (Frost & Sullivan 2026).
Outdoor industrial site showing RO skids and a compact evaporator unit connected by visible pipework in a hybrid ZLD installation
7.2 Modular zero liquid discharge plant design
BlueDrop Waters offers modular and decentralized treatment plants , including modular zero liquid discharge plant configurations.
Benefits:
Scalable capacity that can grow with production
Reduced energy consumption from long pipelines and transfer pumping
Rapid deployment in industrial parks or remote locations
Modules can be configured as MLD-ZLD hybrid system stages, allowing clients to implement MLD first, then upgrade to full ZLD with minimal disruption.
7.3 Digital monitoring and energy optimization
BlueDrop Waters integrates IoT and digital monitoring into its ZLD solutions. This enables:
Real time tracking of flows, pressures, and energy use
Alerts for deviations that could drive higher energy consumption
Data driven tuning of operating conditions to maintain low energy intensity
These capabilities mirror independent research findings that AI-driven process control can reduce ZLD energy intensity by 20 to 30 percent (Bluefield Research 2026).
7.4 Sustainability and nature-based synergies
For sites with broader sustainability agendas, BlueDrop Waters can integrate ZLD with:
Nature based solutions , such as aerated constructed wetlands for upstream or downstream polishing
Surface water restoration where ZLD recoveries and discharge align with ecological projects
Net zero & water investigations that tie ZLD energy use to broader decarbonization plans
By looking at the full water lifecycle, BlueDrop Waters helps clients design not just compliant ZLD, but future ready, energy efficient zero liquid discharge systems .
8. Visual Guide: Energy Flow in a Low Energy ZLD Plant
Block flow diagram of a low energy ZLD plant showing energy flow from feed and pretreatment through RO, evaporator, crystallizer, condensate reuse, and digital control loop
A simplified energy flow for a hybrid low energy ZLD plant typically includes:
Feed water enters pretreatment where low energy pumps and automated controls maintain stable conditions.
RO trains concentrate the feed, using energy recovery devices in ZLD lines to recapture pressure energy.
Concentrate moves to evaporators, which draw on waste heat, mechanical vapor recompression, or solar thermal support.
Crystallizers produce solids for disposal or recovery, while condensate is reused as high quality water.
IoT sensors feed a control room and digital platform that orchestrates all these elements for minimum kWh per cubic meter.
This system level perspective is essential when evaluating design alternatives.
9. Design Checklist: From Concept to Commissioning
To translate concepts into action, engineers and project managers can use a structured ZLD technology selection checklist .
9.1 Feed and process characterization
What are the key contaminants (TDS, hardness, silica, organics, oils)?
How variable are flow and loading across seasons or shifts?
Are there multiple streams that can be blended or segregated?
9.2 Water and heat balance
Target recovery rate and expected minimal liquid discharge and ZLD comparison outcomes
Availability of waste heat sources, temperatures, and load profiles
Potential for onsite or nearby renewable energy
9.3 Technology screening
Evaluate low energy ZLD technologies such as high recovery RO, ultrafiltration, electrodialysis, and hybrid evaporator configurations
Assess membrane-based ZLD vs thermal ZLD tradeoffs in terms of fouling risk, chemical use, and energy
Consider modular versus centralized layouts
9.4 Digital and control strategy
Level of automation and remote monitoring required
Integration with plant DCS, energy management, and reporting systems
Potential role of AI and IoT for ZLD optimization
9.5 Financial and risk evaluation
Scenario analysis for ZLD capex and opex optimization across design options
Sensitivity to energy prices and regulatory changes
Implementation schedule and phasing (for example, MLD first, then ZLD)
This checklist helps teams move from high level ambition to bankable, executable projects.
10. Frequently Asked Questions: Low Energy ZLD in 2026
1. How can energy use be minimized in zero liquid discharge (ZLD) plants?
Energy reduction starts with high recovery membrane ZLD design that minimizes the volume reaching thermal units.
Key steps include:
Using ultrafiltration and robust pretreatment to stabilize RO performance
Configuring reverse osmosis for ZLD pre-concentration with appropriate staging and energy recovery devices
Integrating heat integration in ZLD systems by connecting evaporators to waste heat sources
Applying digital optimization to maintain low specific energy consumption
According to Bluefield Research (2026), these strategies combined can reduce ZLD energy intensity by 20 to 30 percent .
2. What are the best low energy ZLD technologies for 2026?
The most impactful low energy ZLD technologies in 2026 include:
High efficiency RO and nanofiltration systems with energy recovery devices in ZLD trains
Hybrid evaporator-crystallizer designs using mechanical vapor recompression or multiple effect configurations
Renewable or waste heat integrations for thermal stages
Digital monitoring, digital twins, and AI driven control platforms
These elements, used together, define the state of the art in energy efficient zero liquid discharge systems .
3. How do hybrid membrane-thermal ZLD systems work?
Hybrid membrane thermal ZLD systems use membranes for primary and secondary concentration, then thermal units for final crystallization.
A typical flow is: pretreatment, RO, optional electrodialysis, then an evaporator and crystallizer.
By reducing the volume needing thermal treatment by 65 to 75 percent and reusing heat internally, these systems achieve up to 32 percent lower energy use than conventional thermal only plants (Frost & Sullivan 2026).
4. What is the difference between MLD and ZLD, and when is MLD enough?
Minimal liquid discharge (MLD) typically targets 90 to 95 percent recovery, leaving a small brine volume for disposal or offsite treatment.
ZLD goes further by converting all remaining liquid into solids and reusable water.
MLD can be sufficient when regulations allow limited discharge, disposal options are available, and energy cost constraints are significant. However, many plants design an MLD-ZLD hybrid system to enable future progression to full ZLD as regulations tighten.
5. Can solar or renewables realistically power ZLD plants?
Yes, to a meaningful extent. A 2026 analysis notes that over 35 percent of new ZLD plants globally integrate some form of renewable energy , up from 18 percent in 2024 (IDTechEx 2026).
Typically, solar powered zero liquid discharge plant configurations use PV to offset electrical loads in RO and drives, and in some cases solar thermal supports evaporation.
They rarely eliminate grid reliance entirely, but can materially reduce net energy consumption and emissions.
6. How does ZLD support regulatory compliance and corporate sustainability goals?
ZLD helps companies meet strict discharge norms, protect sensitive water bodies, and demonstrate responsible resource management.
By combining high water recovery (often 95 percent or more ) with ZLD energy intensity optimization , operators can both satisfy regulators and align with internal decarbonization and ESG benchmarks.
This dual alignment is a major reason why the global industrial ZLD market is projected to reach 11.2 billion USD by 2026 (MarketsandMarkets 2026).
11. Strategic Takeaways for 2026 ZLD Projects
For industrial facility managers, municipal utilities, and sustainability leaders, three practical takeaways stand out.
Takeaway 1: Design around membranes and heat integration, not around evaporators alone
Use high recovery membrane ZLD design with ultrafiltration, RO, and optional electrodialysis to cut thermal volume by up to 75 percent .
Then, optimize heat integration in ZLD systems using waste heat or renewables to minimize evaporator energy consumption.
Takeaway 2: Treat digital as core infrastructure, not an add-on
Plan for AI and IoT for ZLD optimization from the beginning.
Digital twins, energy dashboards, and predictive maintenance can reduce energy intensity by 20 to 30 percent and protect against unplanned downtime.
Takeaway 3: Use modular and phased approaches to manage risk
Consider modular zero liquid discharge plant designs and staged MLD-ZLD hybrid system rollouts.
This approach allows you to achieve compliance quickly, optimize energy over time, and scale capacity as production grows or regulations tighten.
12. How to Engage with BlueDrop Waters on Low Energy ZLD
If you are planning or retrofitting a ZLD plant for 2026 and beyond, BlueDrop Waters can support you across the full project lifecycle:
Feasibility and investigations : Net zero and water investigations to map current and future regulatory, energy, and water risks.
Process design and technology selection : Technology agnostic evaluation of low energy ZLD technologies and hybrid configurations tailored to your site.
Engineering and deployment : Design and commissioning of energy efficient zero liquid discharge systems , including modular options and integration with existing assets.
Operations and optimization : Ongoing digital monitoring, performance tuning, and upgrades to keep energy use under control.
BlueDrop Waters combines expertise in water treatment, sewage and effluent treatment, ZLD systems, modular plants, and nature-based solutions . This breadth enables solutions that treat water, energy, and environmental outcomes as a connected system.
13. Final Thoughts: Designing ZLD for a Low Energy Future
Low energy zero liquid discharge design has moved from aspiration to a practical requirement for 2026 plants.
By combining membrane pre-concentration, hybrid thermal systems, waste heat and renewables, and digital optimization, operators can achieve 95 percent plus recovery with significantly lower energy use and operating cost.
If you are evaluating new projects or retrofits, now is the time to embed energy efficient zero liquid discharge systems in your capital plans. Engage with BlueDrop Waters to explore how a tailored hybrid architecture, modular configuration, and digital control strategy can transform your ZLD plant into a future ready, low energy asset.
