Hybrid Treatment Trains: How Nanotechnology Water Treatment, Advanced Membranes, and Nature-Based Polishing Cut OPEX and Build Resilience

Hybrid treatment trains are rapidly becoming the preferred strategy for utilities and industries that need to cut operating costs while improving resilience and meeting tighter regulations. By combining nanotechnology water treatment , advanced membranes, and nature-based polishing, operators can create multi-barrier systems that are more efficient, more robust, and more sustainable than conventional, single-technology plants.

A 2026 global survey found that 66% of utilities implementing hybrid water treatment trains reported an average 27% reduction in OPEX compared with conventional systems (Global Water Intelligence, 2026). At the same time, 70% of municipalities cited resilience to climate-driven shocks as a primary reason for adopting hybrid trains (World Bank Water Practice, 2026).

This article explains what hybrid treatment trains are, how nanomaterials and membranes interact with nature-based units, and how this architecture cuts OPEX and risk. It also shows how BlueDrop Waters designs and operates these systems in practice.

1. What Are Hybrid Treatment Trains, Really?

Hybrid treatment trains are intentional combinations of engineered and nature-based processes arranged in a sequence that treats water or wastewater across multiple barriers. Instead of relying on a single technology, such as chemical coagulation or stand-alone activated sludge, hybrid systems integrate:

Physical and chemical pre-treatment

Biological treatment (suspended or attached growth)

Advanced membranes and nanomaterial-based filtration

Nature-based polishing such as constructed wetlands or biofilters

The result is a flexible, resilient architecture that can be tuned for different influent qualities and reuse targets.

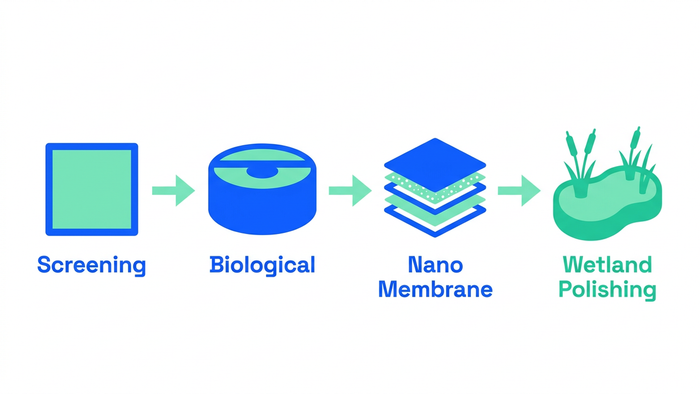

At its simplest, a hybrid train might look like this:

Screening and primary clarification to remove large solids.

Biological treatment in an aeration basin or membrane bioreactor.

Advanced membranes , sometimes enhanced with nanoparticles for water treatment, to achieve high rejection of dissolved contaminants.

Nature-based polishing , such as an aerated constructed wetland, to remove residual nutrients, trace organics, and provide buffering capacity.

More than 74% of industrial water treatment projects in 2026 adopted multi-barrier hybrid systems to meet stricter effluent and reuse standards (Bluefield Research, 2026). That adoption is not theoretical; it reflects a growing consensus that hybrid is now the default for resilient water treatment.

Why Hybrid, Not Just “Add a Filter”?

There is a temptation to think of hybrid water treatment as simply bolting on a new filter or wetland. In practice, true hybrid trains are designed as systems , where each step is sized and operated in relation to the others.

Key characteristics include:

Process complementarity : membranes handle fine particulates and dissolved contaminants; wetlands polish nutrients and organics.

Load sharing : wetlands and biofilms stabilize peaks in load that might otherwise stress membranes.

Redundancy and resilience : if one part underperforms temporarily, the others can buffer performance.

As Dr. Lien Hua wrote in a 2026 water innovations review, “The future of water treatment lies in the intelligent integration of membrane technologies with nature-based systems, cutting both costs and risks while meeting next-generation effluent standards.”

2. The Role of Nanotechnology in Water Treatment

The heart of many hybrid trains is nanotechnology water treatment . By incorporating nanomaterials into membranes and media, plants achieve higher rejection rates, longer maintenance intervals, and finer control over emerging contaminants.

How Nanomaterials Enhance Membranes

Nanotechnology and water treatment intersect in several ways:

Nanoparticles for water treatment (such as functionalized metal oxides) embedded in membranes improve adsorption of specific ions or micropollutants.

Nano-structured surfaces reduce fouling by altering roughness and hydrophilicity.

Thin-film nanocomposite layers on RO or NF membranes enhance selective transport, increasing flux at the same pressure.

According to a 2026 smart water report, nanomaterial-enhanced membrane modules can achieve up to 92% contaminant rejection , a 17% improvement over conventional RO , in new municipal projects (IWA Smart Water Report, 2026).

This is where water treatment by nanotechnology makes a measurable difference. Higher rejection at lower pressure means both better quality and lower energy cost per cubic meter .

From “Nano Water Purification” Hype to Practical Design

Not every promise around nano water purification has materialized at scale. Some early claims overlooked:

Long-term stability of nanoparticles for wastewater treatment.

Risks of nanoparticle release into effluent.

Maintenance and cleaning compatibility.

Practical, proven uses of nanotechnology and water purification now focus on fixed or immobilized nanomaterials rather than free particles. Examples include:

Purification of water using nanotechnology in thin-film membranes, where nano-additives are locked in the polymer matrix.

Waste water treatment using nanoparticles immobilized on media inside filter columns.

Wastewater treatment using nanotechnology in catalytic coatings that accelerate oxidation of recalcitrant organics.

These designs address both performance and environmental safety, while maintaining compatibility with standard CIP and backwash protocols.

Where Nanotechnology and Water Treatment Shines in Hybrid Trains

Nanomaterials deliver the most value in hybrid systems when they are used to:

Protect downstream wetlands by removing toxic metals or organics that stress biota.

Reduce load on ZLD systems , improving energy efficient water treatment at high recovery.

Fine-tune reuse quality , such as pharmaceutical trace removal for industrial or indirect potable reuse.

As one 2026 analyst noted, “Nanotechnology-enabled membranes not only offer superior contaminant removal but also extend maintenance intervals, crucial for low-OPEX operations in water-scarce regions.”

3. Nature-Based Polishing: Constructed Wetlands in a High-Tech World

If nanotechnology water treatment is the high-precision instrument of hybrid trains, constructed wetlands and other nature based water systems are the shock absorbers and finishers . They smooth variability, reduce nutrients, and provide insurance against extreme events.

Nature based solutions for wastewater treatment include:

Free-water surface wetlands.

Subsurface flow wetlands.

Aerated constructed wetlands and biofilters.

A 2026 analysis found that nature-based polishing components, such as constructed wetlands, reduced total nitrogen by an average of 81% in hybrid systems, supporting regulatory compliance in more than 500 projects (Water Environment Federation, 2026).

How Constructed Wetlands Fit Modern Infrastructure

Constructed wetlands for wastewater treatment are not “nice-to-have landscaping”. They are engineered units with:

Defined hydraulic loading rates.

Specified media depth and composition.

Aeration or recirculation to maintain oxygen transfer.

Wetland technology for wastewater treatment fits into modern water infrastructure in several ways:

Tertiary polishing after membranes, removing residual nitrogen, phosphorus, and COD.

Flow equalization during storm events, buffering variable influent.

Decentralized wastewater systems 2026 trend : satellite or cluster wetlands reducing load on central plants.

Nature based water systems also help utilities meet community and ESG expectations. They create green spaces, support biodiversity, and visually communicate sustainability.

Counterpoint: Are Wetlands Too Land Hungry?

A common objection is that constructed wetlands industrial facilities require too much land. This is partly true for low-load, free-water surface wetlands.

Hybrid designs respond by using:

Aerated constructed wetlands with higher loading rates.

Vertical flow wetlands that reduce footprint while maintaining high oxygen transfer.

Stacked or multi-stage wetlands that optimize area per cubic meter treated.

When wetlands are integrated from the start, many industrial and municipal sites find that additional land requirements are offset by lower CAPEX in mechanical polishing units and lower OPEX in chemicals and sludge handling .

4. How Hybrid Treatment Trains Cut OPEX and Improve Resilience

The economic case for hybrid water treatment is no longer speculative. Multiple data sources now show consistent OPEX savings and resilience gains when advanced membranes, nanomaterials, and wetlands are designed as one system.

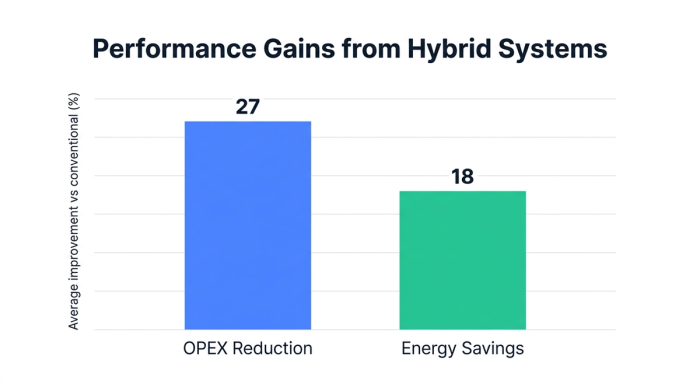

According to Global Water Intelligence (2026):

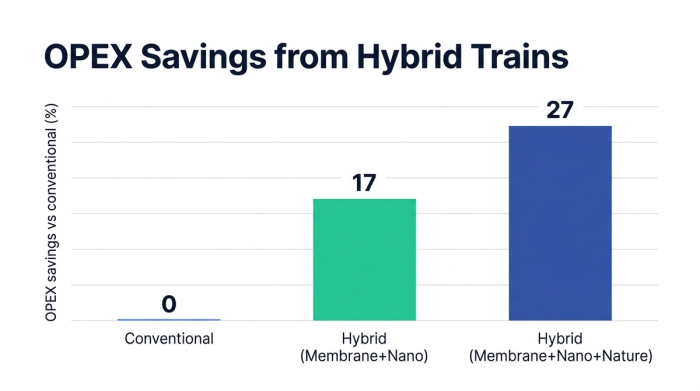

66% of utilities with hybrid trains reported an average 27% OPEX reduction versus conventional systems.

Energy consumption per cubic meter treated fell by 18% on average for facilities using hybrid membrane plus nature-based trains, compared with purely mechanical or chemical tertiary treatment (UNESCO Water Outlook, 2026).

Three Levers of OPEX Reduction

Hybrid systems cut OPEX through three main levers:

Energy savings

Nanotechnology and water treatment membranes reduce pressure requirements.

Nature-based units provide polishing with little or no additional power.

Chemical usage reduction

Less coagulant and oxidant required because membranes and wetlands remove many contaminants biologically or physically.

Lower corrosion and scaling risk in ZLD systems when nano-enabled RO improves quality.

Sludge and waste minimization

Wetlands and biofilms convert dissolved nutrients into biomass, not chemical sludge.

Higher rejection efficiency in nano membranes reduces bleed streams and clarifier load.

Resilience: Performance Under Stress

Resilient water treatment is about maintaining performance under variable influent and extreme events . In 2026, hybrid systems showed particular robustness:

Hybrid treatment installations in Asia-Pacific achieved an average 76% water reuse rate , versus 54% for conventional tertiary systems (UNESCO Water Outlook, 2026).

A global survey reported 70% of municipalities citing resilience to climate-driven shocks as a key driver of hybrid adoption (World Bank Water Practice, 2026).

Hybrid green-gray water infrastructure, combining concrete basins, nano membranes, and wetlands, handles:

Flood pulses by spreading loads across basins and wetlands.

Droughts by enabling higher quality reuse with the same assets.

Influent shocks through natural buffering in ecological units.

When Hybrid Systems Fail (and How to Avoid It)

Not every hybrid project is successful. Common failure modes include:

Undersized wetlands that cannot handle peak flows.

Inadequate pretreatment upstream of nano membranes, causing accelerated fouling.

Poor integration of controls , where each unit works in isolation rather than as a coordinated train.

To avoid this, leading designers use:

Integrated hydraulic modeling across the full train.

Pilot-scale testing of nanoparticle and wetland performance on actual effluent.

Centralized monitoring, ideally with AI-assisted process control for the wastewater treatment plant.

5. Case Studies: Hybrid Trains with Nanotechnology and Wetlands in Action

To understand the real-world impact of nanotechnology and water treatment in hybrid systems, consider two detailed case studies adapted into anonymized, category-based examples.

Case Study 1: Industrial Food & Beverage Campus, Southeast Asia

An industrial food and beverage campus in Southeast Asia upgraded its reuse system in 2026. The new hybrid train included:

High-rate primary clarification.

Biological treatment in a membrane bioreactor.

Nanomaterial-enhanced RO for high rejection and high recovery.

Aerated constructed wetlands for effluent polishing.

Based on documented industry results:

The plant achieved 35% OPEX savings , driven largely by lower energy use and reduced chemical consumption.

Total nitrogen removal reached 82% , comfortably meeting discharge standards and enabling partial reuse.

The facility transitioned to a zero liquid discharge strategy for critical process streams using a downstream ZLD system.

This configuration illustrates waste water treatment using nanoparticles that are immobilized in the RO and NF layers. The nature based water systems downstream handled trace nitrogen and organics that membranes alone cannot manage cost effectively.

Case Study 2: Flood-Resilient Municipal Reuse System, Central Europe

A mid-sized European city redesigned its municipal wastewater plant around a hybrid concept in 2026 to handle increasingly frequent flood events.

Membrane bioreactor (MBR) as the main secondary treatment.

Nanotechnology-enabled nanofiltration as a tertiary barrier.

Aerated constructed wetlands as final polishing and flood-buffering units.

Documented project outcomes showed:

41% lower sludge management costs due to optimized biological processes and reduced chemical sludge.

27% energy savings versus the previous conventional activated sludge and sand filter setup.

Reliable effluent quality throughout major flooding events, confirming the resilient water treatment claims.

This example demonstrates hybrid green-gray water infrastructure in action. Engineered basins and membranes handle consistent loads, while wetlands absorb and release water during storm surges, protecting both the plant and downstream ecosystems.

Key Learnings from the Case Studies

From these and similar industrial wetlands case study examples, several design principles emerge:

Start with a clear reuse or discharge target , then design the hybrid train backward from that requirement.

Use nanotechnology and water treatment membranes to handle precision removal; rely on wetlands for robustness.

Include operational flexibility, such as bypass channels and variable aeration, to adapt to changing conditions.

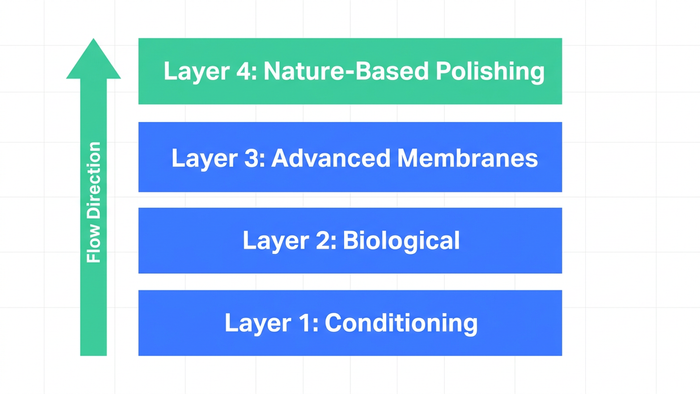

6. A Practical Design Framework: The 4-Layer Hybrid Train

To move from concept to implementation, utilities and industrial operators need a simple framework . BlueDrop Waters often uses a 4-layer hybrid train model that walks from raw water to reuse-ready effluent.

Layer 1: Conditioning and Protection

Objective: Protect downstream assets, especially nano membranes and wetlands.

Typical components:

Coarse screening, grit removal.

Primary clarification or dissolved air flotation.

Equalization to smooth flow and load.

Design notes:

Invest in robust, low-maintenance screening. It is cheaper than replacing membranes.

Use simple controls to ensure wetlands do not see extreme slugs of solids or toxics.

Layer 2: Biological Backbone

Objective: Remove bulk BOD, COD, and a large portion of nutrients.

Typical components:

Conventional activated sludge, IFAS, or an MBR.

Anoxic and aerobic zones for nitrogen removal.

Design notes:

Treat this as the “engine block” of the plant. Nano water purification stages upstream or downstream cannot fully compensate for an undersized biological backbone.

If you are planning ZLD systems, pay extra attention to minimizing organics that could impact crystallizers.

Layer 3: Advanced Membranes and Nanotechnology

Objective: Deliver high-quality effluent for reuse or strict discharge.

Typical components:

Ultra-filtration and nano-filtration membranes.

RO with thin-film nanocomposite layers.

Fixed-bed filters with nanoparticles for wastewater treatment, if specific contaminants require it.

Design notes:

Use of nanotechnology in water treatment should be targeted. Avoid adding complexity unless a specific performance gap justifies it.

Consider a membrane vs chemical treatment cost comparison over a 15-year lifecycle, including energy, chemicals, and sludge.

Layer 4: Nature-Based Polishing and Buffering

Objective: Provide final polishing, resilience, and ecological co-benefits.

Typical components:

Aerated constructed wetlands industrial facilities can host on available land.

Effluent polishing wetlands for nutrient and COD removal.

Green corridors or ponds that provide additional buffering volume.

Design notes:

Effluent polishing wetlands must be treated as process units, with design calculations and monitoring sensors.

Nature based solutions for wastewater treatment are not “passive”; they are managed assets within the hybrid train.

Implementation Checklist

To operationalize this 4-layer model:

Define effluent targets and reuse scenarios.

Map influent variability and potential shock loads.

Size each layer based on both average and peak conditions.

Select where nanotechnology and water treatment adds measurable value.

Design wetlands to work with, not against, membranes.

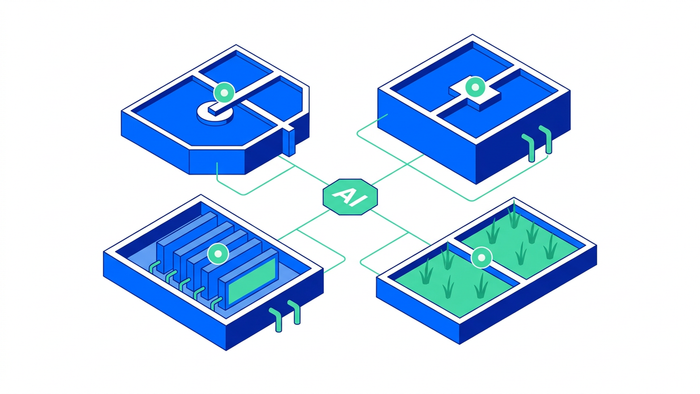

7. Digital Control and AI for Hybrid Wastewater Treatment Plants

Hybrid systems are more powerful but also more complex. To capture the benefits, operators need data-driven control , often using AI tools tailored for wastewater treatment plants.

Why Digital Matters in Hybrid Systems

In a hybrid train, control decisions at one unit affect others. For example, changing MBR sludge age influences membrane fouling and wetland nutrient loading.

AI-supported control platforms help by:

Predicting fouling trends in nano-enabled membranes.

Optimizing aeration in both bioreactors and wetlands to minimize energy.

Adjusting flows between units based on forecasted storms or industrial discharges.

These capabilities align with 2026 trends toward decentralized wastewater systems and modular plants that require fewer on-site operators per unit volume treated.

Practical Digital Use Cases

Utilities and industrial operators can begin with simple, high-impact applications:

Energy optimization : adjust blower and pump setpoints based on real-time oxygen uptake and flow.

Predictive maintenance : use pressure and flux signals from nano membranes to trigger cleaning before performance drops.

Wetland health tracking : monitor dissolved oxygen, redox, and water levels to detect stress.

These steps create a foundation for future AI wastewater treatment plant algorithms that coordinate the entire hybrid train.

8. How BlueDrop Waters Designs Hybrid Treatment Trains

BlueDrop Waters specializes in full-stack, integrated water treatment , which naturally aligns with hybrid green-gray infrastructures that use nanotechnology water treatment and nature-based polishing.

Technology-Agnostic, Outcome-First Design

BlueDrop Waters begins each project by defining quantified outcomes :

OPEX reduction targets.

Reuse percentage and quality.

Sludge and energy footprints.

The team then selects the mix of:

Advanced membranes, including options that incorporate nanoparticles for water treatment.

Biological processes in WTP, STP, or ETP configurations.

Nature based water systems such as aerated constructed wetlands.

Because the company is technology-agnostic, design decisions are tied to lifecycle cost and performance, not to a favored product line.

Integrated Hybrid Architectures and ZLD

For clients pursuing ZLD systems , BlueDrop Waters deploys hybrid architectures where:

High-rejection membranes and nano-enabled RO minimize the volume of concentrate.

Nature-based polishing units remove residual organics and nutrients that could impair evaporators and crystallizers.

This supports the 76% average reuse rate achieved in hybrid installations across Asia-Pacific (UNESCO Water Outlook, 2026). It also reduces the risk of scaling and corrosion in ZLD equipment, a key driver of unplanned downtime.

Lifecycle Management and Monitoring

BlueDrop Waters differentiates itself through full-stack lifecycle management :

Design and engineering of hybrid treatment trains.

Construction, commissioning, and operator training.

Continuous monitoring and diagnostics to maintain performance.

Their monitoring platform supports transparent, data-driven reporting on OPEX, energy intensity, and regulatory compliance. This transparency is central to validating the 18% energy reduction and 27% OPEX savings that hybrid systems are achieving globally.

BlueDrop Waters in Practice: Typical Engagement Flow

Diagnostic assessment of existing plant or greenfield needs, including membrane vs chemical treatment cost comparison scenarios.

Concept design of a hybrid train, identifying where nanotechnology and water treatment and wetlands add value.

Pilot or demonstration to prove performance on local water.

EPC delivery of the final system, including AI-ready instrumentation.

Ongoing optimization , adjusting setpoints and operation strategies as influent and regulations evolve.

9. Counterarguments and Constraints: When Hybrid Is Not the Best First Step

While hybrid water treatment has strong momentum, it is not always the immediate answer. A thoughtful strategy includes recognizing constraints and sequencing improvements.

Situations Where Simple Upgrades Come First

You might postpone hybrid investments if:

The main issue is basic operational discipline, such as poor sludge age control.

Existing assets are underutilized, and performance can improve with better monitoring.

Land for wetlands is unavailable and long-term site control is uncertain.

In such cases, it may be more cost effective to:

Add or refurbish aeration equipment.

Upgrade existing filters without introducing nanoparticles for wastewater treatment.

Implement basic digital monitoring before advanced AI wastewater treatment plant tools.

Barriers to Nano Adoption

Nanotechnology and water treatment still face:

Regulatory uncertainty in some jurisdictions around nanoparticle use.

Skills gaps in maintenance staff unfamiliar with nano-enabled membranes.

Higher up-front CAPEX in some configurations.

These barriers can be mitigated by:

Selecting proven, immobilized nano configurations that have clear permitting precedents.

Providing detailed O&M training and clear SOPs.

Ensuring the membrane vs chemical treatment cost comparison includes all OPEX, not just purchase price.

Recognizing these constraints leads to more credible project plans and avoids overpromising.

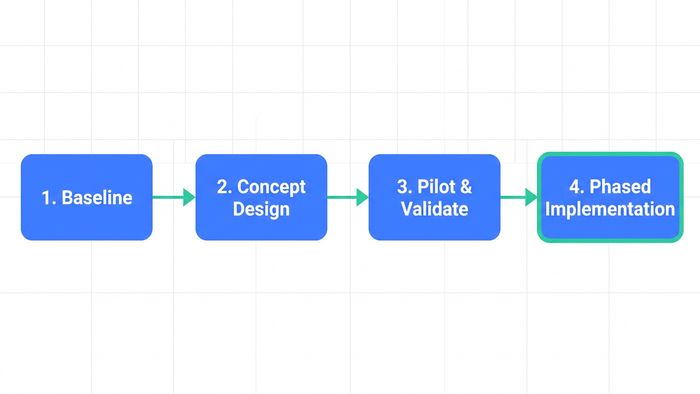

10. Action Plan: How to Start With Hybrid Treatment Trains

For utilities and industrial operators interested in hybrid systems with nanotechnology water treatment and wetlands, a stepwise approach reduces risk.

Step 1: Baseline and Opportunity Mapping

Quantify current OPEX, including energy, chemicals, and sludge hauling.

Identify bottlenecks and failure modes, such as seasonal nutrient spikes or frequent filter backwash.

Define long-term reuse and resilience goals, including potential ZLD systems.

Step 2: High-Level Hybrid Concept

Explore how a 4-layer hybrid train might map onto your site.

Identify candidate locations for constructed wetlands industrial operations can accommodate.

Flag process steps where nano water purification could provide measurable benefit.

Step 3: Pilot Testing and Validation

Pilot at least one nano-enabled membrane and one constructed wetland or biofilter on real effluent.

Measure energy, fouling rates, and nutrient removal in each step.

Use results to refine your operational efficiency water treatment model.

Step 4: Phased Implementation

Start with upgrades that deliver rapid payback, such as energy efficient water treatment measures in aeration and pumps.

Integrate advanced membranes and wetlands in stages to maintain service continuity.

Layer in digital monitoring and basic AI tools as complexity grows.

Three Immediate Takeaways

Think in trains, not units : Design from source to reuse, not as standalone processes.

Use nanotechnology and water treatment where precision is needed , and nature based solutions for wastewater treatment where resilience and buffering are critical.

Insist on lifecycle cost modeling , particularly around OPEX, to justify investments and sequence them correctly.

11. FAQ: Hybrid Treatment Trains, Nanotech, and Wetlands

1. What is a hybrid treatment train in water treatment?

A hybrid treatment train is a multi-barrier system that combines mechanical, biological, advanced membrane, nanotechnology, and nature-based processes into a single, integrated sequence. Instead of relying on one process, such as conventional activated sludge or sand filtration alone, it orchestrates several units so each handles the part of the load it is best suited for.

This architecture provides higher effluent quality, lower OPEX, and greater resilience than single-technology approaches, particularly for reuse and ZLD applications.

2. How does nanotechnology improve water treatment processes?

Nanotechnology and water treatment intersect mainly by improving membranes and media. Nanoparticles for water treatment, when immobilized within membrane layers or filter media, increase contaminant rejection, reduce fouling, and improve flux.

In 2026, nanomaterial-enhanced membranes achieved up to 92% contaminant rejection , a 17% improvement over conventional RO (IWA Smart Water Report, 2026). This means higher quality water at lower energy and cleaning frequency.

3. What are the benefits of combining membranes, nanomaterials, and nature-based water treatment?

The combination of nano-enabled membranes and wetlands offers:

OPEX savings , with reported averages of 27% lower operating costs for hybrid plants (Global Water Intelligence, 2026).

Higher nitrogen and nutrient removal , with hybrid wetlands achieving around 81% total nitrogen reduction (Water Environment Federation, 2026).

Greater resilience , as wetlands buffer shocks while membranes deliver precision.

This multi-barrier approach also supports higher reuse rates and more robust ZLD systems.

4. How can hybrid systems help cut OPEX in water treatment?

Hybrid systems cut OPEX by reducing energy, chemicals, and sludge.

Nanotechnology and water treatment membranes lower energy per cubic meter through more efficient rejection.

Nature based solutions for wastewater treatment reduce chemical demand because they rely on ecological and biological processes.

Sludge volumes drop when less chemical dosing is needed and more nutrients are taken up as biomass in wetlands.

Together, these effects explain why hybrid systems consistently report OPEX reductions compared with conventional treatment.

5. How do constructed wetlands fit into modern water infrastructure?

Constructed wetlands for wastewater treatment are engineered units integrated into the overall plant design. They usually follow biological and membrane treatment as tertiary polishing and buffering.

They are especially useful in hybrid green-gray water infrastructure , where concrete basins and nano-enabled membranes handle most of the load, and wetlands provide resilience, nutrient polishing, and storage during floods.

6. Are nanoparticles for wastewater treatment safe for the environment?

Safety concerns relate primarily to free nanoparticles entering the environment. Modern designs for wastewater treatment using nanotechnology focus on immobilized nanoparticles in membranes or media so that particles remain fixed.

Properly designed and monitored systems minimize release risk, and hybrid trains further mitigate this by using nature based water systems as an additional barrier and monitoring checkpoint.

12. Why Hybrid Treatment Trains Should Be on Your 3–5 Year Roadmap

The evidence from 2026 is clear: hybrid treatment trains that integrate nanotechnology water treatment, advanced membranes, and nature-based polishing are not experimental; they are becoming mainstream infrastructure .

Market analysis shows the hybrid treatment train market is expected to grow by 22% CAGR from 2025 to 2028 , reaching 5.3 billion dollars in value by 2028 (Frost & Sullivan, 2026). This growth is rooted in real performance gains:

OPEX reductions around 27%.

Energy savings near 18%.

Nitrogen removal around 81% with effluent polishing wetlands.

Reuse rates around 76% in leading hybrid installations.

For municipal utilities and industrial operators, the strategic question is no longer “if” but “how and when” to adopt hybrid architectures.

BlueDrop Waters combines advanced WTP, STP, ETP, and ZLD solutions with aerated constructed wetlands and data-driven monitoring to deliver these outcomes in practice. Their technology-agnostic, lifecycle-focused approach helps clients move from traditional plants to resilient, low-OPEX hybrid systems at a manageable pace.

If you are planning upgrades or new capacity in the next 3 to 5 years, now is the moment to evaluate how nanotechnology and water treatment, together with wetlands and digital control, can shape your next-generation infrastructure.

13. Next Steps: Explore a Hybrid Design with BlueDrop Waters

Hybrid treatment trains offer a compelling, data-backed path to cut OPEX, boost resilience, and meet ambitious reuse goals . By intelligently combining nanotechnology water treatment, advanced membranes, and nature-based polishing, utilities and industries can move beyond incremental tweaks to transformative performance.

BlueDrop Waters helps organizations design, build, and operate these systems from end to end, integrating WTP, STP, ETP, ZLD systems, and constructed wetlands into a coherent, monitored whole.

If you are ready to explore how a hybrid train could work for your facility, contact BlueDrop Waters to schedule a design and OPEX assessment workshop and begin mapping your roadmap to a more efficient, resilient water future.
