Zero liquid discharge is no longer niche. Regulators, investors, and communities are pushing industrial and municipal operators toward zero effluent discharge to protect scarce freshwater and fragile ecosystems. Yet the reputation of zero liquid discharge (ZLD) as an energy-hungry, budget-breaking solution still scares many project teams.

The perception is understandable. Thermal evaporators, crystallizers, and complex brine management can send operating expenses soaring if they are not designed correctly. But that outcome is not inevitable. With the right design philosophy, pre-treatment strategy, and modular technologies, you can build energy efficient water treatment that achieves zero discharge water treatment while keeping your electricity bill under control.

This guide walks through a practical, engineering-driven approach to zero liquid discharge that focuses on energy, lifecycle cost, and reliability, not just compliance.

1. Why Zero Liquid Discharge Is Growing Fast (And Why Energy Dominates The Conversation)

Zero liquid discharge systems close the loop on wastewater. A zero liquid discharge system treats and recovers virtually all water from an effluent stream, leaving only solid residues such as salts or sludge. That water can go back into process, cooling, or utility use, which supports industrial water reuse and long term resilience.

The business and regulatory drivers are strong:

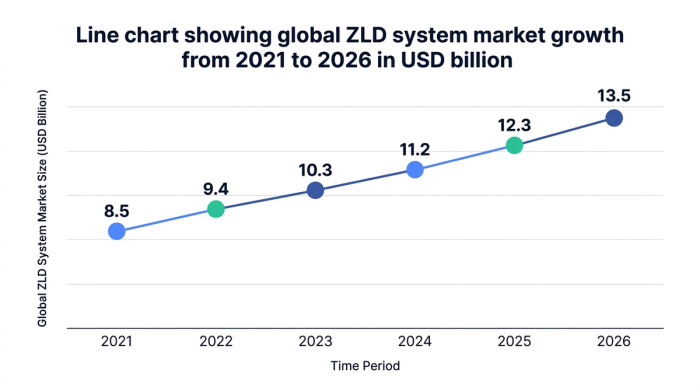

The global ZLD system market is projected to reach 13.5 billion USD by 2026 , at an 8.9 percent CAGR from 2021 to 2026 (MarketsandMarkets 2026).

In India and China, wastewater minimization mandates drove a 40 percent increase in ZLD plant deployments across heavy industry in 2026 (Bluefield Research 2026).

Modular ZLD solutions delivered 25 percent faster deployment and 15 percent lower energy use for mid sized manufacturing clients in 2026 (PwC Water Report 2026).

Despite this growth, energy is still the number one worry:

87 percent of industrial respondents in a 2026 water sector survey cited energy efficiency as their primary concern when designing or upgrading ZLD facilities (Global Water Intelligence 2026).

The reason is simple. Traditional ZLD often relies heavily on high temperature evaporation of large volumes of water. If you treat ZLD as “evaporate everything,” you are almost guaranteed a painful power bill.

The more accurate framing is: ZLD is a system, not a single technology . The art is in reducing the volume that goes to energy intensive stages and recovering energy wherever possible.

What actually consumes energy in ZLD systems

Across typical zld systems, three components dominate energy consumption:

High pressure pumps in membrane stages such as reverse osmosis (RO) or nanofiltration.

Evaporators and crystallizers that handle the final brine.

Auxiliaries such as blowers, mixers, and thermal oil circulation.

Research from Frost and Sullivan (2026) shows that advanced ZLD with integrated energy recovery can reduce operational energy costs by up to 35 percent compared to conventional ZLD setups. That is the gap project teams should be targeting.

The rest of this article focuses on how to design a zero liquid discharge wastewater treatment train that falls in the low energy category, not the high one.

2. Design Principles For Energy Efficient Zero Liquid Discharge

Energy efficient zld technology starts at the concept stage, long before equipment selection. If the influent characterization or treatment philosophy is off, even the most efficient equipment will struggle.

Here are five design principles that consistently differentiate high performing zero discharge systems from expensive ones.

2.1 Maximize water recovery before heat

Evaporation should be the last resort, not the first step.

A typical high performance ZLD plant design follows this hierarchy:

Source reduction and segregation : Reduce wastewater volume at source and segregate high and low strength streams.

Low energy physical and biological steps : Use equalization, dissolved air flotation, biological treatment, and clarification to remove organics and suspended solids.

Advanced filtration technology : Use microfiltration, ultrafiltration, and RO to recover as much water as possible at relatively low specific energy.

Brine concentration and crystallization : Treat only the final, minimized brine volume with thermal methods.

Each cubic meter that is recovered via membranes instead of evaporation saves multiple kilowatt hours. Brine management innovations in ZLD have already driven about 23 percent average operational expenditure savings for large scale adopters (WaterWorld 2026).

2.2 Right size every component

Oversizing equipment “for safety” can quietly destroy energy performance.

Over sized pumps operate far from their best efficiency point and waste power.

Over sized evaporators run at low load for long periods, with poor heat transfer efficiency.

Over sized blowers for aeration or stripping consume more power for marginal gain.

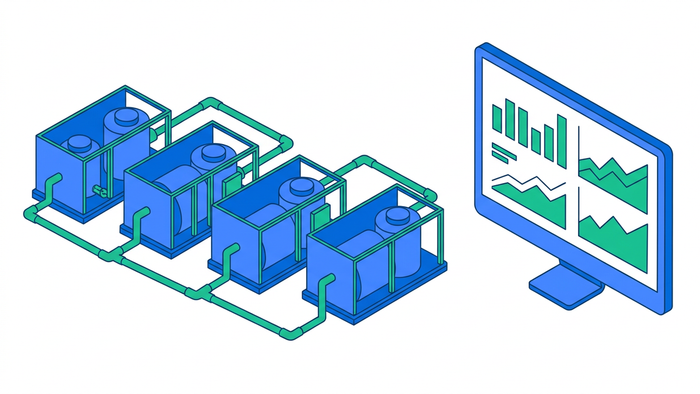

This is where modular water treatment is powerful. Instead of one huge train, modular wastewater treatment plant blocks can be staged and controlled based on actual flow. PwC’s 2026 data shows modular ZLD delivering 15 percent lower energy use precisely because equipment operates closer to design points.

2.3 Design for energy recovery and reuse

Advanced ZLD systems increasingly integrate energy recovery strategies:

RO energy recovery devices capture pressure from concentrate and feed it back to the high pressure side.

Mechanical vapor recompression (MVR) recycles vapor energy within evaporators instead of using fresh steam.

Heat integration recovers low grade heat from one process and uses it to preheat another stream.

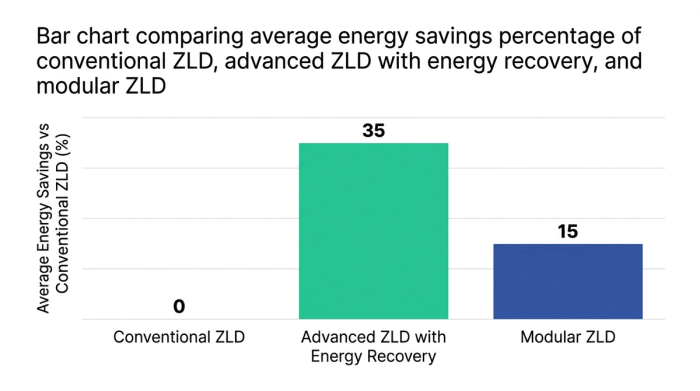

Frost and Sullivan (2026) report up to 35 percent lower energy costs when these tactics are combined in a single zero liquid discharge plant.

2.4 Protect energy intensive stages with robust pre treatment

Poor pre treatment is one of the fastest ways to “blow up” your ZLD power bill.

Fouling and scaling, which force higher pressure and more frequent cleaning.

Reduced water recovery, which increases the volume headed to thermal stages.

More unplanned downtime, which leads to inefficient ramp up cycles.

Nature based solutions such as aerated constructed wetlands and advanced biological steps can substantially reduce COD and TSS before mechanical stages. In practice, this often pays for itself through reduced evaporator duty.

2.5 Use data and automation from day one

A ZLD plant is a living system. Feed quality changes, production shifts, and climate all affect performance.

As Rajiv Patel, Lead Engineer at a global research firm, notes: “ Data driven diagnostics now enable predictive maintenance and real time optimization in ZLD operations, minimizing both downtime and unnecessary energy spikes ” (2026).

Modern zld water treatment should include:

Online conductivity, turbidity, and TOC monitoring at key nodes.

Energy meters on major power consumers.

A plant control system with optimization logic, not just on off control.

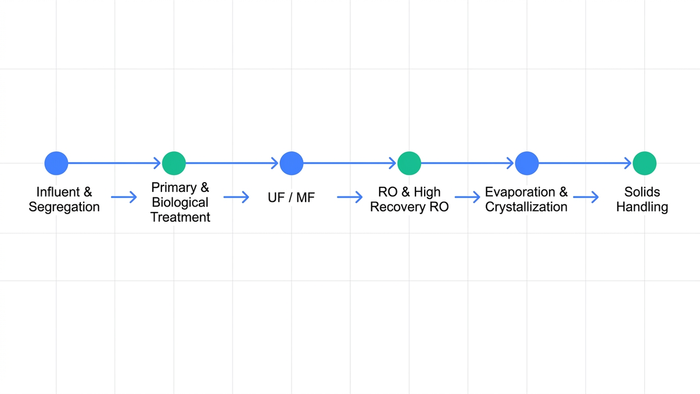

3. Building A Low Energy ZLD Treatment Train: From Influent To Crystals

Now, let us translate those principles into a practical zld plant architecture. While every project is unique, most energy efficient ZLD systems follow a similar backbone.

3.1 Step 1: Source control and wastewater minimization

The cheapest litre to treat is the one you never generate.

Typical interventions include:

Process optimization to reduce water intensity per unit of production.

Segregation of low strength streams (for example cooling tower blowdown) from high strength streams (for example pickling, plating, or dye baths).

Reuse of treated wastewater internally where high purity is not needed, for example utilities or washing.

According to Global Water Intelligence (2026), many industrial sites can achieve 10 to 25 percent wastewater minimization before any major capital outlay simply through process and operations changes.

3.2 Step 2: Primary and biological treatment

Next, you want to take out what will foul downstream units.

A typical front end for sustainable effluent treatment might include:

Equalization and pH correction.

Oil and grease removal using API separators or DAF.

Coagulation and flocculation for suspended solids.

Biological treatment, either conventional activated sludge or advanced solutions such as aerated constructed wetlands .

This stage protects membranes and thermal units while aligning with sustainable water solutions goals by using low energy biological processes.

3.3 Step 3: Advanced filtration and water recovery

Here you shift from “treatment” to wastewater recovery .

A high performance zero liquid discharge system typically uses:

Microfiltration or ultrafiltration as a polishing step.

Reverse osmosis for major volume reduction and production of high quality permeate for industrial water reuse .

Possibly high recovery RO or brine concentrators to further reduce the volume heading to thermal units.

Maria Liu, Senior Analyst at Global Water Intelligence, notes: “ The focus has shifted from compliance to cost optimization in ZLD planning. Energy performance contracts and modular design can significantly change ROI calculus for industrial clients ” (2026).

This is the stage where high quality RO design, including energy recovery devices and smart staging, has a disproportionate impact on final energy intensity.

3.4 Step 4: Brine management and crystallization

Only the final concentrate should reach energy intensive thermal units.

Options for this stage include:

Mechanical vapor recompression evaporators , which recycle vapor energy.

Falling film or forced circulation evaporators , often with multiple effects.

Crystallizers for final salt recovery.

Recent innovation in brine management has produced 23 percent average OPEX savings for large scale adopters (WaterWorld 2026). This includes better scaling control, hybrid membrane thermal schemes, and in some cases resource recovery from salts.

3.5 Step 5: Solid handling and beneficial use

The last step in the ZLD chain is to handle solids responsibly.

Depending on the industry and contaminants, options may include:

Landfill disposal of stable, dewatered salts.

Co processing in cement kilns.

Recovery of specific salts or metals where purity and volume justify it, supporting resource recovery water management goals.

The design aim is to minimize handling energy and maximize any potential value from the solid fraction.

4. Case Studies: What Efficient Industrial ZLD Looks Like In Practice

Real facilities are the best way to test any theory about energy efficiency wastewater strategies. Two 2026 projects highlight how careful design can combine zero effluent discharge with strong financial performance.

Case Study 1: Steel manufacturer cuts ZLD energy use by 32 percent

A large steel producer in India implemented a next generation ZLD plant using modular design and energy recovery evaporators in 2026. The system:

Integrated high recovery RO ahead of MVR evaporators.

Used waste heat from the steelmaking process for feed preheating.

Combined modular process blocks for flexible operation at different loads.

Results reported in the company’s 2026 sustainability disclosures were striking:

32 percent reduction in energy consumption compared with the previous baseline ZLD.

97 percent recovery of process water , supporting internal industrial wastewater reuse .

Significant reduction in freshwater intake and discharge risk.

This matches the broader trend of modular ZLD achieving 15 percent lower energy use on average (PwC Water Report 2026).

Case Study 2: Petrochemical complex uses hybrid ZLD and wetlands for fast payback

A large petrochemical complex in the Middle East opted for a hybrid ZLD approach that combined advanced membranes with constructed wetlands.

Key design choices included:

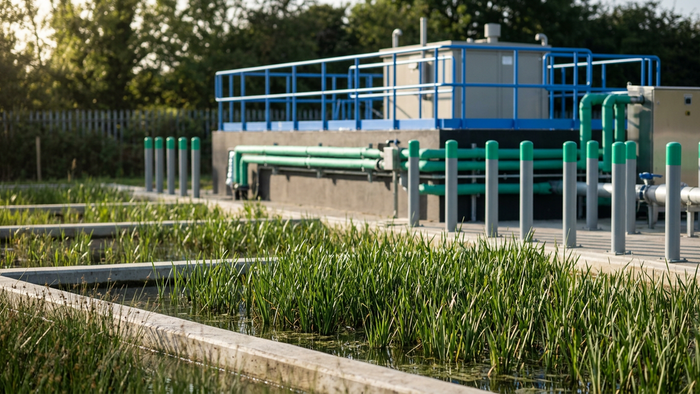

Using aerated constructed wetlands for bulk COD and nutrient reduction.

Installing two stage RO with energy recovery devices for zld etp operations.

Downsizing the evaporator and crystallizer because of lower loading.

The result, as summarized in the operator’s 2026 environmental performance report:

28 percent reduction in electricity use compared to the prior thermal heavy setup.

Payback period of about two years , driven by savings on energy and freshwater purchases.

Stronger community acceptance thanks to visible nature based treatment stages.

These examples highlight a broader market trend: nature based, hybrid ZLD models grew by 31 percent in new projects in 2026 (Frost and Sullivan 2026), as operators seek low energy pathways to zero discharge water treatment.

5. Calculating The Real ROI Of Zero Liquid Discharge Projects

For many decision makers, the question is not “Can we build ZLD?” but “Can we justify the cost?” The answer depends heavily on how you calculate ROI.

Too often, business cases focus only on capital cost and headline energy intensity. That misses several large value streams.

5.1 Direct financial components

When building your business case for a zero liquid discharge plant , quantify:

Avoided discharge fees and penalties

Regulatory penalties for non compliance.

Rising wastewater discharge tariffs.

Freshwater purchase savings

Many industrial and municipal customers face rising tariffs and scarcity pricing.

With high quality recovery, reuse of treated wastewater can cover cooling, utilities, and even some process uses.

Energy costs and savings

Compare conventional vs advanced ZLD with energy recovery. Remember that advanced systems can cut energy OPEX by up to 35 percent (Frost and Sullivan 2026).

Model sensitivity to power price increases.

Maintenance and downtime

Better pre treatment and data driven diagnostics reduce unplanned outages.

Predictive maintenance can extend membrane and equipment life.

5.2 Strategic and ESG benefits

Many companies now factor environmental and social benefits into capital allocation. For zero liquid discharge technology, these include:

Regulatory resilience : ZLD often preempts future tightening of discharge limits.

ESG performance : Lower freshwater abstraction, zero effluent discharge, and resource recovery all strengthen sustainability scores.

License to operate : Communities and investors increasingly expect rigorous sustainable water treatment solutions .

From a risk perspective, zero effluent discharge can act like an insurance policy against future scarcity or stricter rules.

5.3 Payback period benchmarks

Based on recent market analyses and the case studies above, realistic payback ranges for zld technology are:

3 to 7 years for conventional ZLD focused mostly on compliance.

2 to 5 years for energy optimized ZLD combined with high industrial water reuse .

Sometimes less than 3 years where water is scarce and tariffs are high.

As Maria Liu puts it, “ Energy performance contracts and modular design can significantly change ROI calculus ” for industrial clients (2026). Structuring projects with shared savings or performance guarantees is one way to address internal skepticism.

6. Common Pitfalls That Drive Up ZLD Energy Bills (And How To Avoid Them)

Even well intentioned projects can run into trouble. Understanding common failure modes helps you design around them.

6.1 Over reliance on thermal treatment

If membranes are underused and most of the load goes to evaporators, specific energy consumption rises sharply.

Counter strategy:

Maximize recovery in RO and brine concentration.

Use high recovery designs with careful scaling control.

Integrate waste heat and MVR to reduce steam requirements.

6.2 Poor characterization of influent water

If the design is based on incomplete or optimistic influent data, the plant may face unexpected scaling, foaming, or corrosion. This often leads to derating and higher energy use.

Counter strategy:

Conduct comprehensive sampling over different operating scenarios.

Include worst case design envelopes, not just average values.

Pilot test critical steps of zld water treatment when uncertainty is high.

6.3 Underestimating pre treatment needs

Skipping or slimming down pre treatment looks attractive on paper but usually hurts long term performance.

Counter strategy:

Invest in robust primary and secondary treatment, including nature based options where appropriate.

Design for easy maintenance and bypass capacity.

Monitor fouling indicators and adjust chemical programs proactively.

6.4 Limited automation and monitoring

Running a complex zero liquid discharge wastewater treatment plant with minimal instrumentation is like flying without instruments.

Counter strategy:

Include key online sensors and energy meters in base scope.

Use digital tools for anomaly detection and predictive maintenance.

Train operators to interpret trends, not just respond to alarms.

6.5 Counterargument: “Why not just discharge and pay the fee?”

Some stakeholders argue that ZLD is overkill and that paying discharge fees is cheaper.

This can be true for low risk, low tariff situations with abundant water. However, three trends are eroding that logic:

Tighter regulations in major manufacturing hubs.

Water scarcity increasing input costs and risk.

ESG pressure from investors and customers.

For many sectors, ZLD and near ZLD strategies are becoming a competitive necessity, not a luxury.

7. How BlueDrop Waters Designs ZLD Systems That Protect Your Energy Budget

BlueDrop Waters specializes in full stack water management, from influent to reuse and resource recovery. For zero liquid discharge, the company focuses on energy efficient water treatment that achieves compliance and sustainability targets without excessive OPEX.

Here is how BlueDrop’s approach aligns with the strategies described above.

7.1 Integrated Net Zero & ZLD systems

BlueDrop’s Net Zero & ZLD systems are designed as modular trains. Each stage, from biological pre treatment to RO, brine concentrators, evaporation, and crystallization, is right sized and integrated.

This approach enables:

High water recovery ahead of thermal units, which reduces evaporator duty.

Flexible operation under variable flows and loads.

Staged investments as capacity or regulation evolves.

7.2 Nature based pre treatment to protect high energy units

As part of its nature based portfolio, BlueDrop deploys aerated constructed wetlands to cut organics and solids before mechanical treatment.

This lowers:

Fouling risk in membranes.

Scaling and foaming issues in evaporators.

Overall chemical and energy consumption.

The result is a cleaner, more stable feed to energy intensive units, which is essential for sustainable effluent treatment .

7.3 Advanced mechanical and chemical treatment

BlueDrop combines advanced filtration technology, such as UF and RO, with carefully designed chemical programs for scaling and corrosion control.

In practical terms, this means:

Higher water recovery in membrane stages.

Reduced volume going to thermal units.

Lower lifecycle cost for RO elements and evaporators.

This supports robust zld etp performance across industrial sectors.

7.4 Data driven monitoring and optimization

A key differentiator is BlueDrop’s integrated monitoring and diagnostics platform.

The platform:

Continuously tracks energy use and key water quality parameters.

Flags deviations that could indicate fouling, maldistribution, or equipment issues.

Supports predictive maintenance to avoid energy wasting faults.

This aligns directly with expert guidance that data driven diagnostics are central to controlling ZLD costs.

7.5 Consulting, implementation, and lifecycle support

Because BlueDrop operates as a full stack provider, customers receive:

Front end engineering and feasibility assessments to right size the zero liquid discharge plant .

Design build implementation with vetted OEM partnerships.

Remote support, optimization audits, and performance reporting.

For utilities and industries trying to balance compliance, sustainability, and operating cost, this integrated model reduces project risk and accelerates time to value.

8. Practical Checklist For Designing Low Energy ZLD

To make this tangible, here is a checklist you can use during concept design and early engineering.

Influent and load

[ ] Do we have at least 3 to 6 months of representative water quality data?

[ ] Have we identified peak and upset conditions for conservative design?

[ ] Are high strength and low strength streams properly segregated?

Treatment train

[ ] Have we prioritized low energy biological and physical treatment where viable?

[ ] Is RO recovery maximized without unacceptable scaling risk?

[ ] Is the evaporator sized only for the minimized brine volume?

Energy and heat

[ ] Have we integrated waste heat sources where available?

[ ] Are energy recovery devices specified for RO?

[ ] Is MVR considered for relevant thermal units?

Modularity and controls

[ ] Are major process units modular or duplexed for part load efficiency?

[ ] Does the control philosophy include optimization logic, not just basic interlocks?

[ ] Are energy meters and critical analyzers included in base scope?

Sustainability and circularity

[ ] Have we evaluated options for industrial wastewater reuse or onsite water reuse technology?

[ ] Can any solids or salts be recovered or beneficially used?

[ ] Have we quantified the ESG benefits alongside financial metrics?

9. Frequently Asked Questions About Zero Liquid Discharge And Energy Use

1. What is zero liquid discharge and how is it different from conventional treatment?

Zero liquid discharge is a treatment strategy where virtually no liquid effluent leaves the site. Instead, water is recovered for reuse and only solid residues remain.

Conventional treatment usually discharges treated water to the environment. ZLD combines multiple treatment stages to close that loop, often using membranes, evaporators, and crystallizers.

2. Are ZLD systems always more expensive than conventional treatment?

Capital and operating costs for zld systems are typically higher than simple discharge based treatment because of the additional equipment and energy.

However, when you consider avoided discharge fees, freshwater savings, regulatory risk reduction, and ESG benefits, zero liquid discharge technology can be competitive, especially in water scarce or highly regulated regions. Energy optimized designs can narrow the cost gap significantly.

3. How can I reduce the energy consumption of my existing ZLD system?

Common levers to reduce energy use include:

Increasing RO recovery to reduce evaporator load.

Improving pre treatment to cut fouling and maintain design performance.

Retrofitting energy recovery devices and optimizing control logic.

Exploring nature based pre treatment to reduce organic loading.

A performance audit can usually identify specific bottlenecks in your zero liquid discharge wastewater treatment system.

4. Do I always need a crystallizer for ZLD?

Not always. Some applications can meet regulatory and operational goals by concentrating brine to a manageable volume and disposing of it via controlled means or using it in another process.

Crystallizers are needed when you must convert brine fully to solids, either for regulatory reasons or to recover valuable salts.

5. Is modular ZLD suitable for large industrial sites, or only small plants?

Modular water treatment is increasingly common even at large scales. Instead of one massive train, you use multiple modular blocks that can be operated in parallel.

This creates flexibility, easier maintenance, and often better energy performance because units can be run at or near their design point.

6. How can utilities and industries calculate payback for ZLD projects?

A robust payback analysis should include:

Capital investment, including contingencies.

Detailed energy and chemical operating costs.

Savings from reduced freshwater purchases and discharge fees.

Potential revenue or avoided cost from resource recovery.

Monetized ESG and risk reduction benefits where your organization recognizes them.

Energy optimized projects that incorporate high industrial water reuse often achieve paybacks between two and five years, depending on local tariffs and incentives.

10. Three Key Takeaways For Designing ZLD Without Blowing Up Your Energy Bill

To close, here are three practical insights you can apply immediately.

Treat ZLD as a system, not a single technology Optimize the full train for volume reduction before heat. Use membranes, nature based pre treatment, and high recovery designs to minimize the load on energy intensive units.

Design for modularity, energy recovery, and data visibility Modular ZLD and strong monitoring significantly improve energy efficiency wastewater performance. Look for opportunities to reuse heat and pressure, and instrument the plant so you can continuously optimize it.

Build a business case that includes water security and ESG, not just costs When you factor in water risk, regulatory trends, and stakeholder expectations, zero discharge water treatment becomes as much a strategic resilience investment as a compliance measure.

For utilities, industrial operators, and consulting engineers, the choice is no longer between ZLD or affordability. With the right partner and design philosophy, you can achieve zero liquid discharge while keeping operating costs in check.

BlueDrop Waters works with clients across sectors to design and implement sustainable water treatment solutions that balance compliance, cost, and environmental performance. If you are planning a new zero liquid discharge plant or trying to improve an existing one, explore how BlueDrop’s full stack, modular approach can help you meet your ZLD objectives without sacrificing your energy budget.
