Designing Near-ZLD Systems That Do Not Break Your Energy Budget: Lessons from 2024–2025 Installations

Regulators are pushing harder on discharge limits, stakeholders are asking for aggressive industrial water reuse, and plant teams are staring at rising electricity tariffs. Designing near-ZLD systems that stay within a realistic energy budget has become one of the toughest design puzzles in industrial water.

The global zero liquid discharge market is projected to reach 5.1 billion dollars by 2026, growing at 7.8 percent CAGR from 2024, driven largely by regulatory pressure and water scarcity (MarketsandMarkets 2026). Yet energy use already accounts for up to 60 percent of total OPEX in many ZLD and near-ZLD plants (Frost & Sullivan 2026). The wrong design can lock your facility into decades of inflated operating costs.

This article distills lessons from 2024–2025 ZLD and near-ZLD installations , including hybrid designs, IoT-enabled optimization, and nature-based pre-treatment. It also shows how BlueDrop Waters designs practical, energy efficient ZLD solutions that meet compliance targets without crushing your power budget.

1. Near-ZLD vs Full ZLD: What Really Changes in Design and Cost

Before talking about energy savings, you need clarity on the difference between near-ZLD systems and full zero liquid discharge wastewater treatment .

Both aim for maximum wastewater minimization and water recovery. The distinction lies in what happens to the final brine and how hard you push the last few percent of recovery.

Full zero liquid discharge system :

Targets no liquid effluent leaving the site.

Typically includes membrane filtration, followed by multiple evaporation stages and often crystallization.

Produces dry solids suitable for offsite disposal or, in some cases, resource recovery.

Drives water recovery above 95 to 98 percent, but with disproportionate energy consumption in the final evaporation and crystallization steps.

Near-ZLD systems :

Target very low liquid discharge , often above 90 to 95 percent water recovery, but allow a small, tightly controlled discharge stream.

Use high-recovery zld water treatment processes, often hybrid membrane plus low-energy evaporation.

Focus on compliance and water reuse rather than an absolute zero target.

Avoid some of the most energy intensive final stages of a traditional zero discharge plant .

As Dr. Priya Nair, Water Technology Analyst at Frost & Sullivan, explains, “The key to affordable near-ZLD is combining high-recovery membranes with targeted thermal brine management; this hybrid approach delivers regulatory compliance without skyrocketing energy bills.”

The implication for design teams is clear. You should map regulatory requirements and water reuse goals precisely, then decide if a zero liquid discharge plant is truly required or if a rigorously engineered near-ZLD configuration will achieve the same business outcome with 20 to 40 percent lower energy use.

2. Why Traditional ZLD Plants Strain Your Energy Budget

A typical legacy zld plant follows a familiar process sequence: primary treatment, biological treatment, membrane filtration such as reverse osmosis, then large thermal evaporators and crystallizers for brine concentration. In many industrial applications, these thermal units dominate the energy bill.

According to Frost & Sullivan (2026), energy consumption can reach 60 percent of total OPEX for ZLD and near-ZLD facilities, with thermal evaporation as the primary driver. Several factors contribute:

High latent heat demand : Evaporating water at scale requires significant heat, especially when operating at high TDS levels.

Inefficient brine management : Over-sizing evaporators or feeding them relatively dilute streams lowers overall energy efficiency.

Inadequate pre-treatment : Poor upstream removal of organics, hardness, and suspended solids forces more frequent cleaning and reduces heat transfer efficiency.

Lack of automation : Plants operated without real-time performance feedback often run at suboptimal setpoints for long periods.

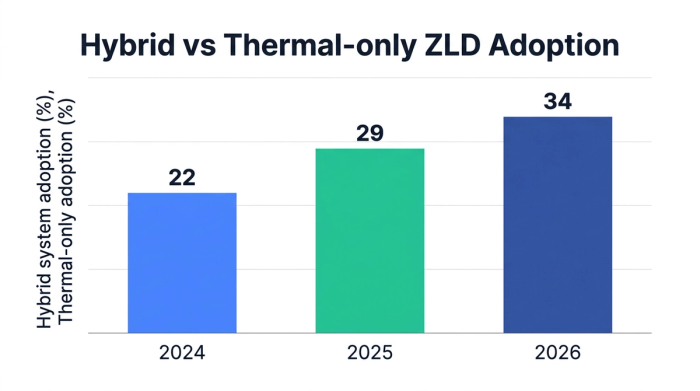

Global Water Intelligence reported that almost 34 percent of new ZLD installations in 2025–2026 adopted hybrid membrane-thermal designs , achieving 20 to 35 percent lower energy use compared to thermal-only legacy systems (GWI 2026). This shift highlights a key lesson from recent projects: you cannot treat thermal units as the default end-of-pipe solution.

Instead, you should treat thermal units as the last resort for concentrated brine , sized only for what advanced membranes and smart pre-treatment cannot handle.

3. Lessons from 2024–2025: What Worked in the Field

Recent installations provide concrete evidence of what actually improves energy efficient ZLD performance. Two sectors, pharmaceuticals and heavy industry, illustrate the trend.

Case Study 1: Pharmaceutical Near-ZLD Retrofit

Pharmaceutical manufacturing represented 18 percent of all near-ZLD projects implemented in 2025–2026 (PharmaWater 2026). One notable 2026 project in India involved a major pharma company that overhauled its wastewater management using a hybrid near-ZLD system .

The configuration combined:

Advanced primary and biological treatment to reduce organics.

Ultrafiltration for suspended solids removal.

High-recovery reverse osmosis in staged configuration.

A low-energy mechanical vapor recompression (MVR) evaporator for the final brine.

The result was a 32 percent reduction in energy consumption and full regulatory compliance, with no penalties in 2026 (PharmaWater 2026). The key learning was that investing in membrane filtration and smart staging upstream substantially lowered the load on the evaporator.

Case Study 2: Steel Plant Near-ZLD with IoT Optimization

A large steel producer upgraded its effluent treatment to a near-ZLD configuration in 2025–2026, using staged membranes and IoT-enabled monitoring.

According to GWI (2026), the plant achieved:

95 percent water recovery from steel production effluent.

40 percent reduction in operational energy costs for water treatment.

Improved regulatory compliance with regional reuse and discharge standards.

IoT-based diagnostics played a crucial role. Real-time monitoring of pressure, flow, and energy metrics enabled dynamic adjustment of setpoints and early detection of fouling.

Laura Gómez, Senior Process Engineer at Bluefield Research, notes that “IoT-based diagnostics are transforming ZLD system operation, enabling predictive maintenance and substantial energy savings over conventional setups.”

These examples reflect a broader trend: modern near-ZLD designs are not just hardware choices; they are data and control strategies . Plants that integrate instrumentation, analytics, and process control achieve higher water recovery and lower energy use with the same equipment footprint.

4. Technical Design Principles for Energy Efficient Near-ZLD

Designing an energy efficient ZLD or near-ZLD plant requires a systematic approach. Think of it like tuning a production line: you want the cheapest steps to carry most of the load and the most expensive steps to do only what absolutely requires them.

Below are key technical principles that emerged from 2024–2025 installations.

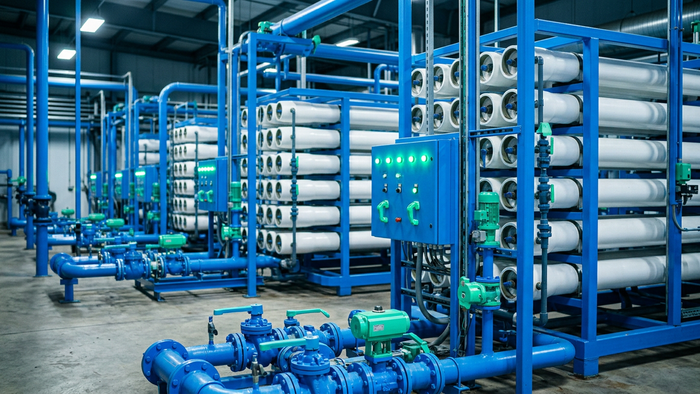

4.1 Use Membranes to Do the Heavy Lifting

Hybrid ZLD systems integrating membrane filtration with low-temperature evaporation are gaining market share, particularly in high TDS industries (MarketsandMarkets 2026). The logic is simple: membranes use electricity, but far less energy per cubic meter of water removed compared to steam-based evaporators.

Best practices include:

Multi-stage RO : Use two or three RO stages with inter-stage energy recovery to push recovery from 70 to 85 percent or higher, depending on feed quality.

High-recovery RO configurations : For suitable water chemistries, advanced RO designs can reach 90 percent or more, significantly shrinking the thermal duty.

UF and MF polishing : Protect RO and downstream units from fouling, which degrades performance and raises specific energy consumption.

Bluefield Research (2026) reports that modern automation and IoT-enabled ZLD systems achieved 15 to 22 percent improved water recovery rates , largely by enabling membranes to operate closer to their optimal design point.

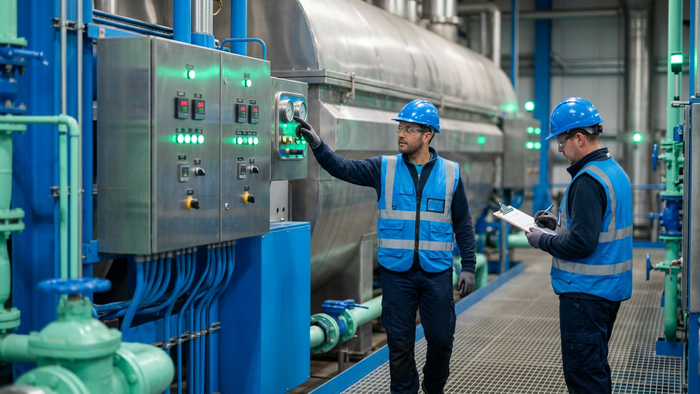

4.2 Right-Size and Reconfigure Thermal Stages

Thermal units remain essential for many zero discharge effluent treatment plant designs, especially for high TDS or complex brines. The energy savings come from intelligent integration, not total removal.

Lessons from recent projects include:

Concentrate first, evaporate later : Push membrane recovery as far as stable operation allows, then feed a more concentrated brine to the evaporator.

Use low-temperature or MVR evaporation : Mechanical vapor recompression and other energy recovery techniques lower specific energy usage compared to conventional multi-effect designs.

Segment brine streams : In some industrial sites, segregating high-load and low-load streams reduces the overall energy needed for evaporation.

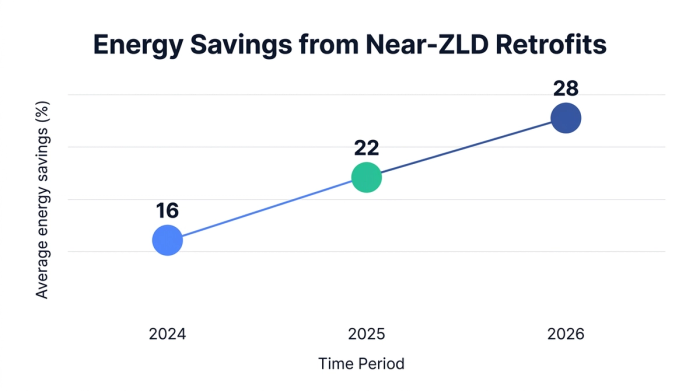

Water Digest India (2026) observed that industries in India saw an average 28 percent reduction in energy expenditures for ZLD operations between 2024 and 2026 , primarily due to adoption of energy-efficient brine management and hybrid thermal configurations.

4.3 Integrate Nature-Based Pre-treatment When Feasible

One of the most overlooked strategies for sustainable water treatment is using aerated constructed wetlands or other nature-based solutions upstream of the high-energy steps.

When organic loads are moderate and land is available, aerated wetlands can:

Lower BOD and COD with minimal external energy.

Reduce sludge generation compared to purely mechanical-biological systems.

Stabilize influent quality for downstream zld treatment plant equipment.

This, in turn, allows membranes and evaporators to run more efficiently, with fewer upsets and cleaning cycles.

4.4 Design for Monitoring, Not Just Nameplate Capacity

A recurring failure mode in older zero liquid discharge technology projects is the focus on installed capacity rather than measurability .

Energy efficient ZLD design should include:

Instrumentation for real-time monitoring of flows, conductivity, pressures, and energy use by stage.

A control philosophy that can adjust operating conditions based on performance data.

Remote access and diagnostics to support optimization over the life of the plant.

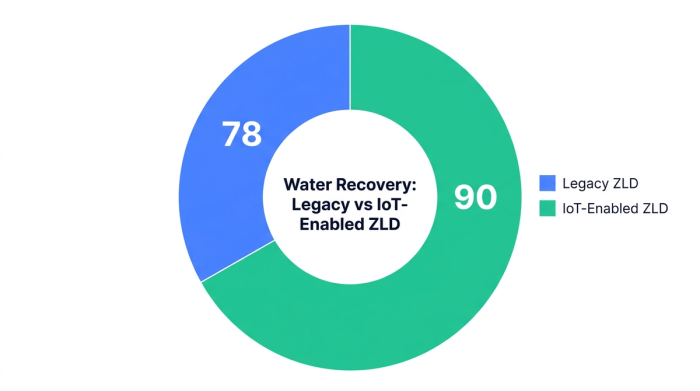

Facilities that adopted remote monitoring cited it as crucial for lowering OPEX in 73 percent of new ZLD installations (Bluefield Research 2026).

5. When ZLD Projects Go Wrong: Common Pitfalls and How to Avoid Them

Every design team has heard stories of zld water treatment system projects that ran over budget or failed to meet targets once commissioned. Many of these failures share a few root causes.

5.1 Over-specifying Full ZLD When Near-ZLD Is Enough

Sometimes corporate sustainability goals or regulatory interpretations push teams to specify a full zero effluent discharge system even when a properly engineered near-ZLD design would meet compliance.

Consequences include:

Oversized evaporators and crystallizers.

Higher capital cost and needless complexity.

Locked-in high energy consumption over decades.

Counterargument: In some sectors, such as hazardous chemical manufacturing or highly sensitive watersheds, full zero discharge systems are the right choice. The lesson is not to avoid full ZLD, but to ensure it is driven by clear risk and regulatory analysis.

5.2 Treating Brine as an Afterthought

In many struggling plants, brine management was left to the end of design, rather than the starting point. Designers selected a zld etp configuration, then tried to adapt it to the brine that appeared.

Better practice is to:

Map all streams, volumes, and compositions early in the project.

Identify opportunities for segregation, internal reuse, and volume reduction.

Use pilots or treatability studies to fine-tune the zero liquid discharge system design.

5.3 Ignoring Life-Cycle OPEX in Favor of CAPEX

Lowest first cost often wins tender processes. However, Frost & Sullivan (2026) data highlights that energy accounts for up to 60 percent of OPEX for ZLD systems, which can outweigh CAPEX differentials within a few years.

An energy efficient ZLD solution may look slightly more expensive on day one, but provides:

Lower net present cost when energy tariffs and maintenance are considered.

Improved reliability due to less thermal stress and fouling.

Stronger alignment with decarbonization and ESG goals.

5.4 Underestimating Operations and Skills Requirements

Zero discharge water treatment plant design is only half the battle. Operations teams must manage complex membrane, biological, and thermal processes.

Common misses include:

Insufficient operator training on new control philosophies and IoT tools.

Lack of clear SOPs for cleaning and maintenance of membranes and evaporators.

No defined KPI framework for energy, recovery, and compliance.

A more realistic approach acknowledges that even the smartest zld technology fails without a robust operations plan and ongoing optimization support.

6. How BlueDrop Waters Designs Energy Smart Near-ZLD and ZLD Systems

BlueDrop Waters specializes in zero liquid discharge water treatment , near-ZLD configurations, and integrated wastewater solutions for industrial, commercial, and municipal clients. The company’s philosophy is simple: water solved, future sustained .

To keep your energy budget under control, BlueDrop applies several design and operations principles.

6.1 Hybrid, Technology-Agnostic Architectures

BlueDrop is technology agnostic and uses a mix of mechanical, biological, and chemical processes tailored to each site. For near-ZLD and full ZLD projects, this typically involves:

High-recovery membranes such as UF, NF, and RO to take most of the separation duty.

Energy efficient evaporators and, where needed, crystallizers sized only for highly concentrated brine.

Specialized pre-treatment, including clarifiers, MBRs, or aerated constructed wetlands to stabilize influent quality.

This hybrid architecture aligns with market data showing that 34 percent of new ZLD installations in 2025–2026 used hybrid designs , delivering 20 to 35 percent energy reduction compared to thermal-only systems (GWI 2026).

6.2 IoT-Enabled Monitoring and Diagnostics

BlueDrop integrates IoT-enabled monitoring and diagnostics across zld water treatment , STP, and ETP plants. Sensors track flows, energy use, quality parameters, and equipment status.

Real-time dashboards for water recovery and specific energy consumption.

Early detection of membrane fouling or scaling in evaporators.

Predictive maintenance scheduling based on actual usage and performance.

According to Bluefield Research (2026), facilities that adopted modern automation and IoT-based control achieved 15 to 22 percent higher water recovery and improved energy optimization.

6.3 Nature-Based Pre-treatment to Reduce Downstream Load

Where conditions allow, BlueDrop designs aerated constructed wetlands as part of the pre-treatment train. This approach:

Uses biological activity and plant systems to remove organics with minimal energy input.

Lowers the organic and solids load on downstream membranes and thermal equipment.

Extends the life of mechanical equipment and reduces cleaning demand.

By cutting the load at the front of the process, energy use in the zero liquid discharge plant stages drops significantly.

6.4 Full Lifecycle Support: From Design to Optimization

BlueDrop does not stop at commissioning. Services cover:

Detailed upfront characterization and treatability testing.

Process design and equipment selection customized by sector, such as pharma, F&B, metals, and hospitals.

Installation, commissioning, and operator training.

Ongoing monitoring support, remote diagnostics, and periodic performance optimization.

For facilities wrestling with existing, energy-hungry zero discharge effluent treatment plant assets, BlueDrop can retrofit hybrid elements and IoT monitoring to move toward an energy efficient ZLD configuration without starting from scratch.

7. Step-by-Step: Selecting the Right ZLD or Near-ZLD Option for Your Facility

Choosing between a full zero liquid discharge plant and a near-ZLD configuration is as much a strategic decision as a technical one. The following step-by-step guide provides a practical path that engineering and sustainability teams can follow.

Step 1: Clarify Regulatory and Corporate Requirements

Start by mapping:

Local, regional, and national discharge norms.

Sector-specific mandates around ZLD compliance .

Corporate ESG or net-zero commitments.

Define a clear numeric target, for example, 95 percent water recovery with controlled discharge or no liquid discharge offsite .

Step 2: Characterize Wastewater and Opportunities for Internal Reuse

Next, undertake a comprehensive characterization of flows and loads:

Segregate high and low TDS streams.

Identify process areas where internal industrial water reuse is technically feasible.

Quantify current water purchases and disposal costs.

This analysis reveals which streams should be prioritized for zld water treatment system integration and where a simpler reuse loop could deliver quick wins.

Step 3: Evaluate Near-ZLD vs Full ZLD Scenarios

Model at least two scenarios:

A near-ZLD system with high-recovery membranes, limited evaporation, and a small, compliant discharge.

A full ZLD configuration with evaporator plus crystallizer and no liquid discharge.

For each, compare:

CAPEX and life-cycle OPEX, including energy and maintenance.

Expected water recovery percentage and payback from reduced freshwater purchase.

Compliance risk and exposure to future regulatory tightening.

This is where many facilities discover that near-ZLD systems provide the best balance of cost, energy use, and compliance.

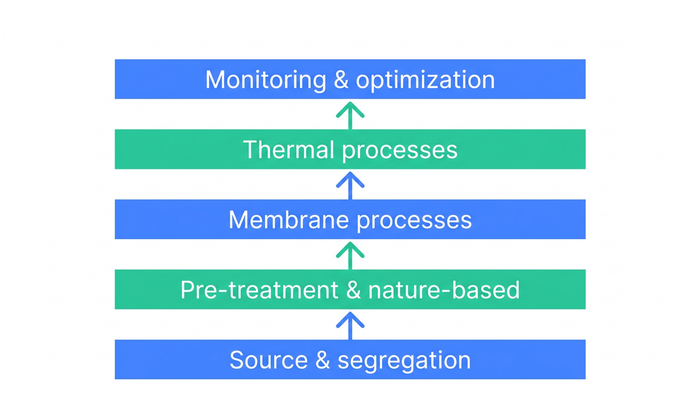

Step 4: Design the Treatment Train Around Energy Priorities

Once you choose a pathway, design the zld treatment plant with energy as a primary constraint, not an afterthought.

Key design choices:

Use membranes upstream to maximize recovery at lower specific energy.

Minimize the volume and operating hours of thermal units.

Integrate energy recovery devices and low-temperature evaporation wherever feasible.

Consider nature-based pre-treatment if conditions are suitable.

Think of it like logistics: you would not ship all goods via air freight when trucks and trains can handle most of the distance. Similarly, let membranes handle most of the water, and use thermal steps only for the last mile.

Step 5: Build in Monitoring, KPIs, and Operations Support

Finally, specify how performance will be tracked and improved over time.

Define KPIs such as:

Overall water recovery percentage.

Specific energy consumption per cubic meter of treated water.

Downtime due to cleaning or maintenance.

Integrate IoT monitoring and dashboards so your teams always see how the zero liquid discharge water treatment system is performing. Align service agreements with suppliers, such as BlueDrop Waters, to include periodic optimization reviews.

8. Counterarguments and Where Energy Efficient ZLD Has Limits

A balanced view also recognizes where energy efficient ZLD has practical limits or where full ZLD is still necessary.

8.1 When Full ZLD Is Non-Negotiable

In some contexts, near-ZLD is not acceptable. Examples include:

Facilities in extremely water-sensitive basins.

Plants dealing with persistent or highly toxic pollutants where any discharge poses risk.

Projects where regulators explicitly mandate full zero discharge systems .

For these sites, design efforts focus on maximizing efficiency within full ZLD, not avoiding it.

8.2 Cases with Complex or Variable Wastewater

Highly variable wastewater quality can undermine membrane performance and increase fouling, which raises energy consumption and cleaning frequency.

Mitigations include:

Advanced pre-treatment and equalization.

More conservative design margins and redundant stages.

Close monitoring and adaptive control.

However, there are cases where the complexity of the effluent pushes you toward more robust, albeit energy intensive, thermal steps.

8.3 Capital Constraints and Short-Term Thinking

Some operators may argue that they cannot afford the upfront cost of hybrid, IoT-enabled near-ZLD systems, even if life-cycle costs are favorable.

The counterpoint is that over 80 percent of industrial facilities with near-ZLD retrofits in 2025–2026 reported improved compliance and lower long-term operational issues (GWI 2026). Structured financing, phased projects, and performance-based contracts can help bridge the CAPEX gap.

9. Three Immediate Takeaways for Plant Decision-Makers

For industrial operators, utilities, and consultants evaluating zero liquid discharge technology , three practical lessons stand out from 2024–2025 projects.

1. Treat energy as a design parameter, not a side effect.

Quantify expected specific energy consumption of each process step.

Use hybrid designs that push membranes to do most of the work.

Size thermal equipment only for what membranes cannot handle.

2. Invest in monitoring and data from day one.

Include IoT instrumentation in your base scope, not as a future upgrade.

Track water recovery, energy, and compliance KPIs in real time.

Use data to inform maintenance and continuous improvement.

3. Choose partners who can support the full lifecycle.

Energy efficient ZLD is a long game involving design, commissioning, and optimization.

Work with solution providers like BlueDrop Waters that can integrate mechanical, biological, and nature-based processes and support performance over time.

These actions are implementable today and can materially change the cost and reliability profile of your zero discharge water treatment plant .

10. Frequently Asked Questions about Near-ZLD and Zero Liquid Discharge

1. What is the difference between near-ZLD systems and full zero liquid discharge?

Near-ZLD systems aim for very high water recovery, typically above 90 to 95 percent, but allow a small, controlled liquid discharge that meets stringent standards. Full zero liquid discharge systems target no liquid discharge at all, often using additional evaporation and crystallization to convert the remaining brine into solid waste.

The last few percent of recovery in full ZLD usually create a disproportionately large increase in energy consumption and capital cost. Many industries find that well designed near-ZLD meets regulatory requirements and sustainability targets at significantly lower life-cycle cost.

2. How do modern ZLD systems actually save energy compared to older plants?

Modern zero liquid discharge system designs use a combination of high-recovery membrane processes and more efficient thermal technologies. Membranes such as RO and NF remove the majority of water with lower specific energy usage, while thermal units are reserved for smaller volumes of concentrated brine.

Integration of IoT-based monitoring and automation further reduces energy use by optimizing operating pressures, flow rates, and cleaning intervals. Studies in 2026 show energy savings of 20 to 35 percent for hybrid systems relative to thermal-only ZLD, and additional gains from IoT-enabled optimization (GWI 2026, Bluefield Research 2026).

3. What are the most common challenges in operating a ZLD plant?

Typical challenges include:

High energy and chemical consumption.

Membrane fouling and scaling of thermal equipment.

Variability in wastewater quality that stresses the process.

Insufficient instrumentation, which makes optimization difficult.

Many of these issues can be reduced by better pre-treatment, stream segregation, hybrid membranes plus thermal design, and integrated monitoring. Partnering with experienced providers such as BlueDrop Waters also helps ensure robust SOPs and ongoing technical support.

4. How can our facility decide if near-ZLD is acceptable for compliance?

You should start by reviewing the exact regulatory language for your region, sector, and site. Some authorities specify numeric discharge limits and recovery targets that can be met with a near-ZLD system and small, highly treated discharge. Others explicitly require full ZLD.

In parallel, assess internal risk tolerance and corporate sustainability goals. A qualified engineering partner can model both near-ZLD and full ZLD options for your site, comparing compliance risk, energy use, CAPEX, and OPEX so that you can make a documented decision.

5. Can existing ETP or ZLD plants be retrofitted to become more energy efficient?

Yes. Many existing zld etp and ETP installations can be upgraded rather than entirely replaced. Typical retrofit actions include:

Adding high-recovery RO stages upstream of existing evaporators.

Integrating better pre-treatment to stabilize feed quality.

Installing IoT-based monitoring for energy, flow, and quality.

Reconfiguring brine routing and segregation.

These changes often deliver double-digit reductions in energy use and improved water recovery without a full greenfield project.

11. Visual Framework: The Energy-Aware ZLD Design Stack

To make these concepts concrete, it helps to visualize an energy-aware design stack for zero liquid discharge wastewater treatment .

From bottom to top:

Source and segregation layer : Mapping processes, segregating streams, and identifying internal reuse loops.

Pre-treatment and nature-based layer : Equalization, primary treatment, biological processes, and where applicable, aerated wetlands.

Membrane layer : UF, NF, and RO stages optimized for high recovery and fouling control.

Thermal layer : Low-temperature evaporators and, if required, crystallizers sized for minimized brine volumes.

Monitoring and optimization layer : IoT sensors, control systems, and analytics for continuous improvement.

This layered approach ensures that the most energy intensive components sit at the top, processing only what cannot be handled more efficiently below.

12. How BlueDrop Waters Can Support Your Next ZLD or Near-ZLD Project

BlueDrop Waters brings together advanced water treatment technologies , nature-based solutions, and IoT monitoring in a single, integrated offering.

For industrial operators, municipalities, and commercial facilities, BlueDrop provides:

Custom design of near-ZLD and full ZLD systems using hybrid membrane plus thermal architectures.

Sector-specific expertise across pharmaceuticals, F&B, metals, hospitals, education, and industrial parks.

Nature-based pre-treatment such as aerated constructed wetlands to lower energy use downstream.

IoT-enabled diagnostics and performance reporting that give you transparency into water recovery, energy use, and compliance.

The company manages the full lifecycle from design to deployment and optimization. That means your zero effluent discharge system or near-ZLD plant is not only technically sound on day one, but also tuned to remain efficient as your operations and regulations evolve.

13. Final Thoughts: Designing Zero Liquid Discharge Without Blowing Your Energy Budget

Zero liquid discharge is no longer a niche solution. With market size expected to reach 5.1 billion dollars by 2026 and regulatory pressures mounting, more facilities are moving toward full or near-ZLD configurations (MarketsandMarkets 2026).

The central lesson from 2024–2025 installations is clear: energy efficient ZLD is achievable when you prioritize hybrid designs, data-driven operation, and nature-based pre-treatment . Membranes should handle most of the separation, thermal units should be the targeted final step, and IoT monitoring should keep the entire system optimized.

If you are planning a new zero liquid discharge plant or looking to retrofit an existing zero discharge water treatment plant , this is the right moment to reconsider your design assumptions.

Talk to BlueDrop Waters to explore how a tailored near-ZLD or ZLD solution can meet your compliance goals, improve industrial water reuse, and protect your energy budget.
